libsangoma_hwec.c File Reference

Hardware Echo Canceller API Code Library for Sangoma AFT T1/E1/Analog/BRI hardware. More...

#include "libsangoma.h"
#include "libsangoma-pvt.h"
#include "wanpipe_includes.h"
#include "wanpipe_events.h"
#include "wanec_api.h"
#include "wanec_iface_api.h"

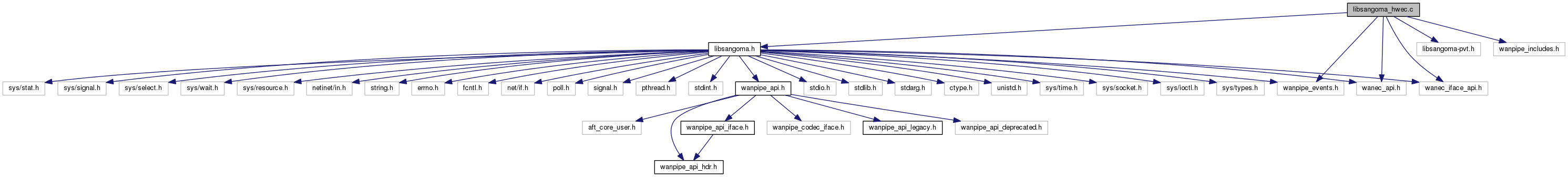

Include dependency graph for libsangoma_hwec.c:

Go to the source code of this file.

Functions
void _LIBSNG_CALL	sangoma_hwec_initialize_custom_parameter_structure (wan_custom_param_t *custom_param, char *parameter_name, char *parameter_value)
	Initialize Custom Paramter structure. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_config_init (char *device_name, wan_custom_param_t custom_params[], unsigned int number_of_custom_params)
	Load Firmware image onto EC chip and allocated per-port resources in HWEC API. All chip-wide configuration paramters, if any, must be specified at the time of chip initialization. Note that Analog card is considered a "single-port" card by HWEC API. That means for Analog cards and for single-port digital cards only a single sangoma_hwec_config_init() call is required, all subsequent calls will have no effect. For multi-port cards, such as A102/A104/A108/A500, the sangoma_hwec_config_init() must be called for each port, at least one time. Only the first call will actually load the Firmware image onto EC chip, all subsequent calls (for other ports) will only add the Port to list of ports which use the HWEC API. Actions of sangoma_hwec_config_init() can be reversed by calling sangoma_hwec_config_release(). When Port is stopped, the HWEC API automatically releases per-port resources and removes the Port from list ports which use HWEC API. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_config_release (char *device_name)
	Release resources allocated by sangoma_hwec_config_init(). For single-port cards, such as A101 and A200 (A200 is an Analog card and considered sinle-port by HWEC API), a single call to sangoma_hwec_config_release() will free the per-chip resources. For multi-port cards, such as A102/A104/A108/A500, sangoma_hwec_config_release() can be called for each port to remove it from list Ports which are using HWEC API. When sangoma_hwec_config_release() is called for the last Port which was "configured/initialized by HWEC API", the per-chip resources will be freed. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_config_operation_mode (char *device_name, int mode, unsigned int fe_chan_map)
	Modify channel operation mode. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_config_power_on (char *device_name, unsigned int fe_chan_map)
	Set the channel state in the echo canceller to NORMAL/POWER ON. This enables echo cancelation logic inside the chip. The action is internal to EC chip itself, not related to AFT FPGA. This call is slow and should be used only on startup. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_config_power_off (char *device_name, unsigned int fe_chan_map)
	Set the channel state in the echo canceller to POWER OFF. This disables echo cancellatio logic inside the chip and data passes unmodified through the ec chip. The action is internal to EC chip itself, not related to AFT FPGA. This call is slow and should be used only on startup. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_enable (char *device_name, unsigned int fe_chan_map)
	Redirect audio stream from AFT FPGA to EC chip. This command effectively enables echo cancellation since data is now forced through the EC chip by the FPGA. Data will be modified by the echo canceller. This command is recommened for fast enabling of Echo Cancellation. Note 1: Chip must be configured and in POWER ON state for echo Chancellation to take place. Note 2: sangoma_tdm_enable_hwec() function can be used to achive the same funcitnality based on file descriptor versus channel map. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_disable (char *device_name, unsigned int fe_chan_map)
	Force AFT FPGA to bypass the echo canceller. This command effectively disables echo cancellation since data will not flowing through the ec chip. Data will not be modified by the echo canceller. This command is recommened for fast disabling of Echo Cancelation. Note: sangoma_tdm_disable_hwec() function can be use to achive the same functionality based on file descriptor versus channel map. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_config_channel_parameter (char *device_name, char *parameter, char *parameter_value, unsigned int channel_map)
	Modify channel configuration parameters. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_config_tone_detection (char *device_name, int tone_id, int enable, unsigned int fe_chan_map, unsigned char port_map)
	Enable/Disable tone detection (such as DTMF) of channels from channel map. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_print_statistics (char *device_name, int full, unsigned int fe_chan)
	Read and print Chip/Channel statistics from EC chip. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_audio_buffer_load (char *device_name, char *filename, char pcmlaw, int *out_buffer_id)
	Load audio buffer to EC chip. The buffer can be played out using the sangoma_hwec_audio_buffer_playout() function. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_audio_mem_buffer_load (char *device_name, unsigned char *buffer, unsigned int in_size, char pcmlaw, int *out_buffer_id)
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_audio_buffer_unload (char *device_name, int in_buffer_id)
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_audio_buffer_playout (char *device_name, unsigned int fe_chan_map, unsigned char port, int in_buffer_id, int start, int repeat_cnt, int duration)
	Start playing out an audio buffer previously loaded by sangoma_hwec_audio_buffer_load(). More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_config_verbosity (int verbosity_level)
	Set Verbosity level of EC API Driver and Library. The level controls amount of data printed to stdout and to wanpipelog.txt (Windows) or /var/log/messages (Linux) for diagnostic purposes. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_get_channel_statistics (sng_fd_t fd, unsigned int fe_chan, int *hwec_api_return_code, wanec_chan_stats_t *wanec_chan_stats, int verbose, int reset)
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_get_global_chip_statistics (sng_fd_t fd, int *hwec_api_return_code, wanec_chip_stats_t *wanec_chip_stats, int verbose, int reset)
	Get Global statistics from EC chip. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_get_chip_image_info (sng_fd_t fd, int *hwec_api_return_code, wanec_chip_image_t *wanec_chip_image, int verbose)
	Get information about Firmware Image of EC chip. More...
sangoma_status_t _LIBSNG_CALL	sangoma_hwec_set_hwdtmf_removal (sng_fd_t fd, unsigned int fe_chan, int *hwec_api_return_code, int enable, int verbose)

Detailed Description

Hardware Echo Canceller API Code Library for Sangoma AFT T1/E1/Analog/BRI hardware.

Author(s): David Rokhvarg david.nosp@m.r@sa.nosp@m.ngoma.nosp@m..com

Copyright: (c) 2005-2011 Sangoma Technologies Corporation

• Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
  • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  • Neither the name of the Sangoma Technologies nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY Sangoma Technologies ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL Sangoma Technologies BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

Definition in file libsangoma_hwec.c.

Function Documentation

void _LIBSNG_CALL sangoma_hwec_initialize_custom_parameter_structure	(	wan_custom_param_t *	custom_param,
		char *	parameter_name,
		char *	parameter_value
	)

Initialize Custom Paramter structure.

Parameters

parameter_name	Parameter Name
parameter_value	Parameter Value

Returns

None

Definition at line 166 of file libsangoma_hwec.c.

Referenced by sangoma_hwec_config_channel_parameter().

{
    memset(custom_param, 0x00, sizeof(*custom_param));

    strncpy( custom_param->name, parameter_name, sizeof(custom_param->name) );

    if (sangoma_hwec_is_numeric_parameter(parameter_name)) {
        custom_param->dValue = atoi(parameter_value);
    } else {
        strncpy(custom_param->sValue, parameter_value, sizeof(custom_param->sValue));
    }
}

Here is the caller graph for this function:

sangoma_status_t _LIBSNG_CALL sangoma_hwec_config_init	(	char *	device_name,
		wan_custom_param_t	custom_params[],
		unsigned int	number_of_custom_params
	)

Load Firmware image onto EC chip and allocated per-port resources in HWEC API. All chip-wide configuration paramters, if any, must be specified at the time of chip initialization. Note that Analog card is considered a "single-port" card by HWEC API. That means for Analog cards and for single-port digital cards only a single sangoma_hwec_config_init() call is required, all subsequent calls will have no effect. For multi-port cards, such as A102/A104/A108/A500, the sangoma_hwec_config_init() must be called for each port, at least one time. Only the first call will actually load the Firmware image onto EC chip, all subsequent calls (for other ports) will only add the Port to list of ports which use the HWEC API. Actions of sangoma_hwec_config_init() can be reversed by calling sangoma_hwec_config_release(). When Port is stopped, the HWEC API automatically releases per-port resources and removes the Port from list ports which use HWEC API.

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Note that wanpipe1_if1 and wanpipe1_if2 will access the same Port - wanpipe1. Linux: wanpipe1, wanpipe2...
custom_params[]	- (optional) array of custom paramter structures. This is list of Echo Cancellation chip parameters: Chip parameter Chip parameter value ================= ======================= WANEC_TailDisplacement 0-896 WANEC_MaxPlayoutBuffers 0-4678 WANEC_EnableExtToneDetection TRUE | FALSE WANEC_EnableAcousticEcho TRUE | FALSE
number_of_custom_params	- (optional) number of structures in custom_params[]. Minimum value is 1, maximum is 4, if any other value the custom_params[] will be ignored.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 215 of file libsangoma_hwec.c.

References SANG_STATUS_FAILED_ALLOCATE_MEMORY, and SANG_STATUS_SUCCESS.

{
    sangoma_status_t rc = SANG_STATUS_SUCCESS;
    wanec_api_config_t config;

    memset(&config, 0x00, sizeof(config));

    if (number_of_custom_params >= 1 && number_of_custom_params <= 4) {

        wan_custom_param_t *custom_parms_ptr;
        unsigned int i, custom_params_memory_size;

        custom_params_memory_size = sizeof(wan_custom_param_t) * number_of_custom_params;

        /* Do NOT change memory at custom_params[] (it belongs to the caller).
         * Instead allocate temporary buffer, and use information in custom_params[]
         * for proper initialization the temproary buffer and
         * and send if down to API driver. */
        custom_parms_ptr = malloc(custom_params_memory_size);
        if (!custom_parms_ptr) {
            return SANG_STATUS_FAILED_ALLOCATE_MEMORY;
        }

        memset(custom_parms_ptr, 0x00, custom_params_memory_size);

        for (i = 0; i < number_of_custom_params; i++) {

            strcpy( custom_parms_ptr[i].name, custom_params[i].name );

            if (sangoma_hwec_is_numeric_parameter(custom_params[i].name)) {
                custom_parms_ptr[i].dValue = atoi(custom_params[i].sValue);
            } else {
                strcpy(custom_parms_ptr[i].sValue, custom_params[i].sValue);
            }
        } /* for() */

        config.conf.param_no = number_of_custom_params;
        config.conf.params = custom_parms_ptr;

    }/* if() */

    /* Load firmware on EC chip AND apply configuration, if any. */
    rc = wanec_api_config( device_name, libsng_hwec_verbosity_level, &config );

    if (config.conf.params) {
        free(config.conf.params);
    }

    return rc;
}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_config_release

(

char *

device_name

)

Release resources allocated by sangoma_hwec_config_init(). For single-port cards, such as A101 and A200 (A200 is an Analog card and considered sinle-port by HWEC API), a single call to sangoma_hwec_config_release() will free the per-chip resources. For multi-port cards, such as A102/A104/A108/A500, sangoma_hwec_config_release() can be called for each port to remove it from list Ports which are using HWEC API. When sangoma_hwec_config_release() is called for the last Port which was "configured/initialized by HWEC API", the per-chip resources will be freed.

Parameters

device_name

Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Note that wanpipe1_if1 and wanpipe1_if2 will access the same Port - wanpipe1. Linux: wanpipe1, wanpipe2...

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 283 of file libsangoma_hwec.c.

{
    sangoma_status_t rc;
    wanec_api_release_t release;

    memset(&release, 0, sizeof(wanec_api_release_t));

    rc = wanec_api_release( device_name, libsng_hwec_verbosity_level, &release );

    return rc;
}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_config_operation_mode	(	char *	device_name,
		int	mode,
		unsigned int	fe_chan_map
	)

Modify channel operation mode.

Modify channel operation mode.

Parameters

mode	One of WANEC_API_OPMODE_? values defined in wanpipe_api_iface.h: WANEC_API_OPMODE_NORMAL, WANEC_API_OPMODE_HT_FREEZE, WANEC_API_OPMODE_HT_RESET, WANEC_API_OPMODE_POWER_DOWN, WANEC_API_OPMODE_NO_ECHO, WANEC_API_OPMODE_SPEECH_RECOGNITION.
fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 298 of file libsangoma_hwec.c.

Referenced by sangoma_hwec_config_power_off(), and sangoma_hwec_config_power_on().

{
    sangoma_status_t rc;
    wanec_api_opmode_t  opmode;

    memset(&opmode, 0, sizeof(wanec_api_opmode_t));

    opmode.mode = mode;
    opmode.fe_chan_map = fe_chan_map;

    /* modes are:
    WANEC_API_OPMODE_NORMAL,
    WANEC_API_OPMODE_HT_FREEZE,
    WANEC_API_OPMODE_HT_RESET,
    WANEC_API_OPMODE_POWER_DOWN,
    WANEC_API_OPMODE_NO_ECHO,
    WANEC_API_OPMODE_SPEECH_RECOGNITION.
    */
    rc = wanec_api_opmode(device_name, libsng_hwec_verbosity_level, &opmode);

    return rc;
}

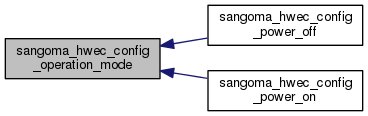

Here is the caller graph for this function:

sangoma_status_t _LIBSNG_CALL sangoma_hwec_config_power_on	(	char *	device_name,
		unsigned int	fe_chan_map
	)

Set the channel state in the echo canceller to NORMAL/POWER ON. This enables echo cancelation logic inside the chip. The action is internal to EC chip itself, not related to AFT FPGA. This call is slow and should be used only on startup.

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 338 of file libsangoma_hwec.c.

References sangoma_hwec_config_operation_mode().

{
    return sangoma_hwec_config_operation_mode(device_name, WANEC_API_OPMODE_NORMAL, fe_chan_map);
}

Here is the call graph for this function:

sangoma_status_t _LIBSNG_CALL sangoma_hwec_config_power_off	(	char *	device_name,
		unsigned int	fe_chan_map
	)

Set the channel state in the echo canceller to POWER OFF. This disables echo cancellatio logic inside the chip and data passes unmodified through the ec chip. The action is internal to EC chip itself, not related to AFT FPGA. This call is slow and should be used only on startup.

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 361 of file libsangoma_hwec.c.

References sangoma_hwec_config_operation_mode().

{
    return sangoma_hwec_config_operation_mode(device_name, WANEC_API_OPMODE_POWER_DOWN, fe_chan_map);
}

Here is the call graph for this function:

sangoma_status_t _LIBSNG_CALL sangoma_hwec_enable	(	char *	device_name,
		unsigned int	fe_chan_map
	)

Redirect audio stream from AFT FPGA to EC chip. This command effectively enables echo cancellation since data is now forced through the EC chip by the FPGA. Data will be modified by the echo canceller. This command is recommened for fast enabling of Echo Cancellation. Note 1: Chip must be configured and in POWER ON state for echo Chancellation to take place. Note 2: sangoma_tdm_enable_hwec() function can be used to achive the same funcitnality based on file descriptor versus channel map.

Redirect audio stream from AFT FPGA to EC chip. This command effectively enables echo cancellation since data is now forced through the EC chip by the FPGA. Data will be modified by the echo canceller. This command is recommened for fast enabling of Echo Cancellation. Note 1: Chip must be configured and in POWER ON state for echo Chancellation to take place. Note 2: sangoma_tdm_enable_hwec() function can be use to achive the same funcitnality based on file descriptor versus channel map.

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 389 of file libsangoma_hwec.c.

{
    return sangoma_hwec_bypass(device_name, 1 /* enable */, fe_chan_map);
}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_disable	(	char *	device_name,
		unsigned int	fe_chan_map
	)

Force AFT FPGA to bypass the echo canceller. This command effectively disables echo cancellation since data will not flowing through the ec chip. Data will not be modified by the echo canceller. This command is recommened for fast disabling of Echo Cancelation. Note: sangoma_tdm_disable_hwec() function can be use to achive the same functionality based on file descriptor versus channel map.

Force AFT FPGA to bypass the echo canceller. This command effectively disables echo cancellation since data will not be flowing through the ec chip. Data will not be modified by the echo canceller. This command is recommened for fast disabling of Echo Cancelation. Note: sangoma_tdm_disable_hwec() function can be used to achive the same functionality based on file descriptor versus channel map.

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 416 of file libsangoma_hwec.c.

{
    return sangoma_hwec_bypass(device_name, 0 /* disable */, fe_chan_map);;
}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_config_channel_parameter	(	char *	device_name,
		char *	parameter,
		char *	parameter_value,
		unsigned int	channel_map
	)

Modify channel configuration parameters.

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
parameter	Echo Cancellation channel parameter

This channel parameters are listed under "Channel parameter":

Channel parameter Channel parameter value ================= ======================= WANEC_EnableNlp TRUE | FALSE WANEC_EnableTailDisplacement TRUE | FALSE WANEC_TailDisplacement 0-896 WANEC_SoutLevelControl TRUE | FALSE WANEC_RinAutomaticLevelControl TRUE | FALSE WANEC_SoutAutomaticLevelControl TRUE | FALSE WANEC_SoutAdaptiveNoiseReduction TRUE | FALSE WANEC_RoutNoiseReduction TRUE | FALSE WANEC_ComfortNoiseMode COMFORT_NOISE_NORMAL COMFORT_NOISE_FAST_LATCH COMFORT_NOISE_EXTENDED COMFORT_NOISE_OFF WANEC_DtmfToneRemoval TRUE | FALSE WANEC_AcousticEcho TRUE | FALSE WANEC_NonLinearityBehaviorA 0-13 WANEC_NonLinearityBehaviorB 0-8 WANEC_DoubleTalkBehavior DT_BEH_NORMAL DT_BEH_LESS_AGGRESSIVE WANEC_AecTailLength 128 (default), 256, 512 or 1024 WANEC_EnableToneDisabler TRUE | FALSE

Parameters

parameter_value	channel parameter value, listed under "Channel parameter value"
fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.

Returns

SANG_STATUS_SUCCESS: success, or error status

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
parameter	Echo Cancellation channel parameter

This is list of Echo Cancellation channel parameters:

Channel parameter Channel parameter value ================= ======================= WANEC_EnableNlp TRUE | FALSE WANEC_EnableTailDisplacement TRUE | FALSE WANEC_TailDisplacement 0-896 WANEC_SoutLevelControl TRUE | FALSE WANEC_RinAutomaticLevelControl TRUE | FALSE WANEC_SoutAutomaticLevelControl TRUE | FALSE WANEC_SoutAdaptiveNoiseReduction TRUE | FALSE WANEC_RoutNoiseReduction TRUE | FALSE WANEC_ComfortNoiseMode COMFORT_NOISE_NORMAL COMFORT_NOISE_FAST_LATCH COMFORT_NOISE_EXTENDED COMFORT_NOISE_OFF WANEC_DtmfToneRemoval TRUE | FALSE WANEC_AcousticEcho TRUE | FALSE WANEC_NonLinearityBehaviorA 0-13 WANEC_NonLinearityBehaviorB 0-8 WANEC_DoubleTalkBehavior DT_BEH_NORMAL DT_BEH_LESS_AGGRESSIVE WANEC_AecTailLength 128 (default), 256, 512 or 1024 WANEC_EnableToneDisabler TRUE | FALSE

Parameters

fe_chan_map

Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 464 of file libsangoma_hwec.c.

References sangoma_hwec_initialize_custom_parameter_structure().

{
    sangoma_status_t rc;
    wanec_api_modify_t channelModify;
    wan_custom_param_t custom_param;

    memset(&channelModify, 0x00, sizeof(channelModify));

    sangoma_hwec_initialize_custom_parameter_structure(&custom_param, parameter, parameter_value);

    channelModify.fe_chan_map = channel_map;
    channelModify.conf.param_no = 1;
    channelModify.conf.params = &custom_param;

    rc = wanec_api_modify( device_name, libsng_hwec_verbosity_level, &channelModify );

    return rc;
}

Here is the call graph for this function:

sangoma_status_t _LIBSNG_CALL sangoma_hwec_config_tone_detection	(	char *	device_name,
		int	tone_id,
		int	enable,
		unsigned int	fe_chan_map,
		unsigned char	port_map
	)

Enable/Disable tone detection (such as DTMF) of channels from channel map.

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
tone_id	See wanpipe_api_iface.h for list of valid tones
enable	A flag, if 1 - the specified tone will be detected, if 0 - specified tone will not be detected.
fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.
port_map	Port of tone detection - Rx, Tx. See wanpipe_events.h for list of valid ports (WAN_EC_CHANNEL_PORT_SOUT...).

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 505 of file libsangoma_hwec.c.

{
    sangoma_status_t rc;
    wanec_api_tone_t tone;

    memset(&tone, 0, sizeof(wanec_api_tone_t));

    tone.id     = tone_id;
    tone.enable = enable;
    tone.fe_chan_map = fe_chan_map;
    tone.port_map   = port_map;
    tone.type_map   = WAN_EC_TONE_PRESENT | WAN_EC_TONE_STOP;

    rc = wanec_api_tone( device_name, libsng_hwec_verbosity_level, &tone );

    return rc;
}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_print_statistics	(	char *	device_name,
		int	full,
		unsigned int	fe_chan_map
	)

Read and print Chip/Channel statistics from EC chip.

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
full	Flag to read full statistics, if set to 1.
fe_chan	Channel number (a timeslot for Digital, a line for Analog) where the call will read statistics. Values from 1 to 31 will indicate the channel nuber. A value of zero will indicate request to print global chip statistics, not per-channel statistics.

Returns

SANG_STATUS_SUCCESS: success, or error status

Parameters

device_name	Sangoma API device name. Windows: wanpipe1_if1, wanpipe2_if1... Linux: wanpipe1, wanpipe2...
full	Flag to read full statistics, if set to 1.
fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will read statistics.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 541 of file libsangoma_hwec.c.

{
    sangoma_status_t rc;
    wanec_api_stats_t stats;

    memset(&stats, 0, sizeof(wanec_api_stats_t));

    stats.full  = full;
    stats.fe_chan = fe_chan;
    stats.reset = 0;    /* do not reset */

    rc = wanec_api_stats( device_name, libsng_hwec_verbosity_level, &stats );

    return rc;
}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_audio_buffer_load	(	char *	device_name,
		char *	filename,
		char	pcmlaw,
		int *	out_buffer_id
	)

Load audio buffer to EC chip. The buffer can be played out using the sangoma_hwec_audio_buffer_playout() function.

Parameters

filename	name of the audio file (without the extension). Actual file must have .pcm extension. Location: Windows: SystemRoot% (ex: c:) Linux: /etc/wanpipe/buffers
out_buffer_id	when the buffer is loaded on the chip, it is assigned an ID. This ID should be used when requesting to play out the buffer.

Returns

SANG_STATUS_SUCCESS: success, or error status

Parameters

buffer	Pointer to in memory buffer to be loaded on the chip.
size	Size of buffer.
out_buffer_id	when the buffer is loaded on the chip, it is assigned an ID. This ID should be used when requesting to play out the buffer.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 574 of file libsangoma_hwec.c.

References SANG_STATUS_SUCCESS.

{
    sangoma_status_t rc;
    wanec_api_bufferload_t bufferload;

    memset(&bufferload, 0, sizeof(wanec_api_bufferload_t));
    *out_buffer_id = -1;

    bufferload.buffer = filename;
    bufferload.pcmlaw = pcmlaw;

    rc = wanec_api_buffer_load( device_name, libsng_hwec_verbosity_level, &bufferload );
    if( rc ) {
        return rc;
    }

    *out_buffer_id = bufferload.buffer_id;

    return SANG_STATUS_SUCCESS;
}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_audio_buffer_playout	(	char *	device_name,
		unsigned int	fe_chan_map,
		unsigned char	port_map,
		int	buffer_id,
		int	start,
		int	repeat_cnt,
		int	duration
	)

Start playing out an audio buffer previously loaded by sangoma_hwec_audio_buffer_load().

Parameters

fe_chan_map	Bitmap of channels (timeslots for Digital, lines for Analog) where the call will take effect.
port_map	Port where the buffer will be played out. This is the channel port on which the buffer will be played (WAN_EC_CHANNEL_PORT_SOUT or WAN_EC_CHANNEL_PORT_ROUT)
in_buffer_id	ID of the buffer which will be unloaded. The ID must be initialized by sangoma_hwec_audio_bufferload().
start	If 1 - start the play out, 0 - stop the play out
repeat_cnt	Number of times to play out the same buffer
duration	Maximum duration of the playout, in milliseconds. If it takes less then 'duration' to play out the whole buffer, it will be repeated to fill 'duration' amount of time. If 'duration' is set to non-zero, this parameter overrides the repeat_cnt flag.

Returns

SANG_STATUS_SUCCESS: success, or error status

Definition at line 677 of file libsangoma_hwec.c.

References start().

{
    sangoma_status_t rc;
    wanec_api_playout_t playout;

    memset(&playout, 0, sizeof(wanec_api_playout_t));

    playout.start       = start;
    playout.fe_chan     = fe_chan_map;
    playout.buffer_id   = in_buffer_id;
    playout.port        = port;
    playout.notifyonstop    = 1;
    playout.user_event_id   = 0xA5; /* dummy value */
    playout.repeat_cnt  = repeat_cnt;
    playout.duration    = (duration) ? duration : cOCT6100_INVALID_VALUE;   /* default is no duration */

    rc = wanec_api_playout( device_name, libsng_hwec_verbosity_level, &playout);

    return rc;
}

Here is the call graph for this function:

void _LIBSNG_CALL sangoma_hwec_config_verbosity

(

int

verbosity_level

)

Set Verbosity level of EC API Driver and Library. The level controls amount of data printed to stdout and to wanpipelog.txt (Windows) or /var/log/messages (Linux) for diagnostic purposes.

Set Verbosity level of EC API. The level controls amount of data printed to stdout and wanpipelog.txt for diagnostic purposes.

Parameters

verbosity_level

Valid values are from 0 to 3.

Returns

SANG_STATUS_SUCCESS: success, or error status

Parameters

verbosity_level

Valid values are from 0 to 3.

Returns

SANG_STATUS_SUCCESS: success - the level was changed to 'verbosity_level', SANG_STATUS_INVALID_PARAMETER: error - the level was not changed because new level is invalid

Definition at line 712 of file libsangoma_hwec.c.

References SANG_STATUS_INVALID_PARAMETER, and SANG_STATUS_SUCCESS.

{
    if (verbosity_level >= 0 || verbosity_level <= 3) {
        libsng_hwec_verbosity_level = verbosity_level;
        wanec_api_set_lib_verbosity(verbosity_level);
        return SANG_STATUS_SUCCESS;
    }
    return SANG_STATUS_INVALID_PARAMETER;
}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_get_global_chip_statistics	(	sng_fd_t	fd,
		int *	hwec_api_return_code,
		wanec_chip_stats_t *	wanec_chip_stats,
		int	verbose,
		int	reset
	)

Get Global statistics from EC chip.

Parameters

fd	device file descriptor
hwec_api_return_code	will contain one of WAN_EC_API_RC_x codes which are defined in wanec_iface_api.h
wanec_chip_stats	structure will be filled with HWEC channel statistics.
verbose	Flag indicating to the Driver to print additional information about the command into Wanpipe Log file.
reset	Flag to reset (flush) global statistics to zero, if set to 1.

Returns

SANG_STATUS_SUCCESS: success, or error status of IOCTL

Definition at line 793 of file libsangoma_hwec.c.

References SANG_STATUS_SUCCESS.

{

    sangoma_status_t err;
    wan_ec_api_t ec_api;

    memset(&ec_api, 0x00, sizeof(ec_api));

    ec_api.cmd = WAN_EC_API_CMD_STATS_FULL;

    ec_api.verbose = verbose;

    /* indicate to Driver to get chip stats, not channel stats, by setting fe_chan_map to zero */
    ec_api.fe_chan_map = 0;

    /* user may want to reset (clear) Chip statistics */
    ec_api.u_chip_stats.reset = reset;

    err = sangoma_hwec_ioctl(fd, &ec_api);
    if (err) {
        /* error in IOCTL */
        return err;
    }

    /* copy stats from driver buffer to user buffer */
    memcpy(wanec_chip_stats, &ec_api.u_chip_stats, sizeof(*wanec_chip_stats));

    *hwec_api_return_code = ec_api.err;

    return SANG_STATUS_SUCCESS;

}

sangoma_status_t _LIBSNG_CALL sangoma_hwec_get_chip_image_info	(	sng_fd_t	fd,
		int *	hwec_api_return_code,
		wanec_chip_image_t *	wanec_chip_image,
		int	verbose
	)

Get information about Firmware Image of EC chip.

Parameters

fd	device file descriptor
hwec_api_return_code	will contain one of WAN_EC_API_RC_x codes which are defined in wanec_iface_api.h
wanec_chip_image_t	structure will be filled with HWEC channel statistics.
verbose	Flag indicating to the Driver to print additional information about the command into Wanpipe Log file.

Returns

SANG_STATUS_SUCCESS: success, or error status of IOCTL

Definition at line 843 of file libsangoma_hwec.c.

References SANG_STATUS_SUCCESS.

{
    sangoma_status_t err;
    wan_ec_api_t ec_api;

    memset(&ec_api, 0x00, sizeof(ec_api));

    ec_api.cmd = WAN_EC_API_CMD_STATS_IMAGE;

    ec_api.verbose = verbose;

    /* driver will copy image information into wanec_chip_image->f_ChipImageInfo */
    ec_api.u_chip_image.f_ChipImageInfo = wanec_chip_image->f_ChipImageInfo;

    err = sangoma_hwec_ioctl(fd, &ec_api);
    if (err) {
        /* error in IOCTL */
        return err;
    }

    *hwec_api_return_code = ec_api.err;

    return SANG_STATUS_SUCCESS;
}
