wanpipe_api_iface.h File Reference

WANPIPE(tm) Driver API Interface -. More...

#include "wanpipe_api_hdr.h"

Include dependency graph for wanpipe_api_iface.h:

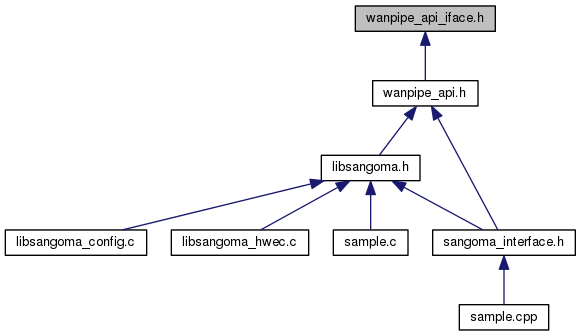

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_wp_bert_status
	BERT status and statistics. More...
struct	wan_api_ss7_cfg_status
struct	wanpipe_chan_stats
	TDM API channel statistics. More...
struct	_DRIVER_VERSION
struct	wanpipe_api_dev_cfg
	TDM API Device Configuration Structure. More...
struct	wanpipe_api_cmd
	Wanpipe API Device Command Structure used with WANPIPE_IOCTL_API_CMD. More...
struct	wanpipe_api_callbacks
	Wanpipe API Callback Structure. More...
struct	wanpipe_api
	Wanpipe API Command Structure. More...

Macros
#define	WP_API_FEATURE_DTMF_EVENTS   1
	Indicates to developer that dtmf feature is available.
#define	WP_API_FEATURE_FE_ALARM   1
	Indicates to developer that fe alarm feature is available.
#define	WP_API_FEATURE_EVENTS   1
	Indicates to developer that events feature is available.
#define	WP_API_FEATURE_LINK_STATUS   1
	Indicates to developer that link status feature is available.
#define	WP_API_FEATURE_POL_REV   1
	Indicates to developer that polarity reversal feature is available.
#define	WP_API_FEATURE_LOGGER   1
	Indicates to developer that Wanpipe Logger API feature is available.
#define	WP_API_FEATURE_FAX_EVENTS   1
#define	WP_API_FEATURE_RM_GAIN   1
	Indicates to developer that analog hardware gain feature is available.
#define	WP_API_FEATURE_LOOP   1
	Indicates to developer that loop feature is available.
#define	WP_API_FEATURE_BUFFER_MULT   1
	Indicates to developer that buffer multiplier featere is available.
#define	WP_API_FEATURE_RX_TX_ERRS   1
	Indicates to developer that rx tx error reporting feature is available.
#define	WP_API_FEATURE_EC_CHAN_STAT   1
	Indicates to developer that echo channel status feature is available.
#define	WP_API_FEATURE_LIBSNG_HWEC   1
#define	WP_API_FEATURE_DRIVER_GAIN   1
#define	WP_API_FEATURE_FE_RW   1
#define	WP_API_FEATURE_HWEC_PERSIST   1
#define	WP_API_FEATURE_FAX_TYPE_EVENTS   1
#define	WP_API_FEATURE_HARDWARE_RESCAN   1
#define	WP_API_FEATURE_LED_CTRL   1
#define	WP_API_FEATURE_SS7_FORCE_RX   1
#define	WP_API_FEATURE_SS7_CFG_STATUS   1
#define	WP_API_FEATURE_LIBSNG_HWEC_DTMF_REMOVAL   1
#define	WP_BERT_DECODE_SEQUENCE_TYPE(sequence)
#define	WP_BERT_STATUS_OUT_OF_SYNCH   0
#define	WP_BERT_STATUS_IN_SYNCH   1
#define	WP_API_EVENT_SET   0x01
	Option to write a particular command.
#define	WP_API_EVENT_GET   0x02
	Option to read a particular command.
#define	WP_API_EVENT_ENABLE   0x01
	Option to enable command.
#define	WP_API_EVENT_DISABLE   0x02
	Option to disable command.
#define	WP_API_EVENT_MODE_DECODE(mode)
	Decode disable/enable command. More...
#define	WPTDM_A_BIT   WAN_RBS_SIG_A
	RBS BIT A.
#define	WPTDM_B_BIT   WAN_RBS_SIG_B
	RBS BIT B.
#define	WPTDM_C_BIT   WAN_RBS_SIG_C
	RBS BIT C.
#define	WPTDM_D_BIT   WAN_RBS_SIG_D
#define	WP_API_EVENT_RXHOOK_OFF   0x01
	Rx Off Hook indication value.
#define	WP_API_EVENT_RXHOOK_ON   0x02
	Rx ON Hook indication value.
#define	WP_API_EVENT_RXHOOK_FLASH   0x03
	Rx WINK FLASH indication value.
#define	WP_API_EVENT_RXHOOK_DECODE(state)
	Print out the hook state. More...
#define	WP_API_EVENT_RING_PRESENT   0x01
	Ring Present Value.
#define	WP_API_EVENT_RING_STOP   0x02
	Ring Stop Value.
#define	WP_API_EVENT_RING_DECODE(state)
	Print out the Ring state. More...
#define	WP_API_EVENT_RING_TRIP_PRESENT   0x01
	Ring Trip Present Value.
#define	WP_API_EVENT_RING_TRIP_STOP   0x02
	Ring Trip Stop Value.
#define	WP_API_EVENT_RING_TRIP_DECODE(state)
	Print out the Ring Trip state. More...
#define	WP_API_EVENT_LINK_STATUS_CONNECTED   0x01
	Link Connected state value.
#define	WP_API_EVENT_LINK_STATUS_DISCONNECTED   0x02
	Link Disconnected state value.
#define	WP_API_EVENT_LINK_STATUS_DECODE(status)
	Print out the Link state. More...
#define	WP_API_EVENT_POL_REV_POS_TO_NEG   0x01
	Polarity Reversal Postive to Negative.
#define	WP_API_EVENT_POL_REV_NEG_TO_POS   0x02
	Polarity Reversal Negative to Positive.
#define	WP_API_EVENT__POL_REV_NEG_TO_POS   WP_API_EVENT_POL_REV_NEG_TO_POS
#define	WP_API_EVENT_POLARITY_REVERSE_DECODE(polarity_reverse)
	Print out the Polarity state. More...
#define	WP_API_EVENT_TONE_DIAL   0x01
	Dial tone value.
#define	WP_API_EVENT_TONE_BUSY   0x02
	Busy tone value.
#define	WP_API_EVENT_TONE_RING   0x03
	Ring tone value.
#define	WP_API_EVENT_TONE_CONGESTION   0x04
	Contestion tone value.
#define	WP_API_EVENT_TONE_DTMF   0x05
	Define tone indicates TONE type DTMF.
#define	WP_API_EVENT_TONE_FAXCALLING   0x06
	Define tone indicates TONE type FAXCALLING.
#define	WP_API_EVENT_TONE_FAXCALLED   0x07
	Define tone indicates TONE type FAXCALLED.
#define	WAN_BRI_BCHAN1   0x01
	BRI Channel 1.
#define	WAN_BRI_BCHAN2   0x02
	BRI Channel 2.
#define	WAN_BRI_DCHAN   0x03
	BRI Dchan Channel.
#define	WP_PORT_NAME_FORM   "wanpipe%d"
	String define of a wanpipe port name.
#define	WP_INTERFACE_NAME_FORM   "wanpipe%d_if%d"
	String define of a wanpipe interface name.
#define	WP_CTRL_DEV_NAME   "wanpipe_ctrl"
#define	WP_CONFIG_DEV_NAME   "wanpipe"
#define	WP_TIMER_DEV_NAME_FORM   "wanpipe_timer%d"
#define	WP_LOGGER_DEV_NAME   "wanpipe_logger"
#define	WP_AFT_CHAN_ERROR_STATS(chan_stats, var)   chan_stats.var++;chan_stats.errors++
#define	WP_AFT_RX_ERROR_SUM(chan_stats)
#define	WP_AFT_TX_ERROR_SUM(chan_stats)
#define	WANPIPE_API_CMD_SZ   512
#define	WANPIPE_API_DEV_CFG_MAX_SZ   337
#define	WANPIPE_API_CMD_SZ_UNION   WANPIPE_API_CMD_SZ - (sizeof(unsigned int)*3) - (sizeof(unsigned char)*2)
#define	WANPIPE_API_CMD_RESERVED_SZ   128 - sizeof(int)*1 - sizeof(char)*3
#define	WANPIPE_API_DEV_CFG_SZ   sizeof(int)*20 + sizeof(char)*4 + WANPIPE_API_CMD_RESERVED_SZ + sizeof(wanpipe_chan_stats_t)
#define	WANPIPE_API_CMD_INIT_SPAN(wp_cmd_ptr, span_no)   ((wp_cmd_ptr)->span = (unsigned char)span_no)
#define	WANPIPE_API_CMD_INIT_CHAN(wp_cmd_ptr, chan_no)   ((wp_cmd_ptr)->chan = (unsigned char)chan_no)
#define	WANPIPE_API_INIT_SPAN(wanpipe_api_ptr, span_no)   WANPIPE_API_CMD_INIT_SPAN(&wanpipe_api_ptr->wp_cmd, span_no)
#define	WANPIPE_API_INIT_CHAN(wanpipe_api_ptr, chan_no)   WANPIPE_API_CMD_INIT_CHAN(&wanpipe_api_ptr->wp_cmd, chan_no)

Typedefs
typedef int	sng_fd_t
	Windows/Unix file handle abstraction.
typedef enum wp_bert_sequence_type	wp_bert_sequence_type_t
typedef struct _wp_bert_status	wp_bert_status_t
typedef struct wan_api_ss7_cfg_status	wan_api_ss7_cfg_status_t
typedef struct wanpipe_chan_stats	wanpipe_chan_stats_t
typedef struct _DRIVER_VERSION	wan_driver_version_t
typedef struct _DRIVER_VERSION	DRIVER_VERSION
typedef struct _DRIVER_VERSION *	PDRIVER_VERSION
typedef struct wanpipe_api_dev_cfg	wanpipe_api_dev_cfg_t
typedef struct wanpipe_api_cmd	wanpipe_api_cmd_t
typedef struct wanpipe_api_callbacks	wanpipe_api_callbacks_t
typedef struct wanpipe_api	wanpipe_api_t

Enumerations
enum	WANPIPE_IOCTL_CODE {   WANPIPE_IOCTL_WRITE =1, WANPIPE_IOCTL_READ, WANPIPE_IOCTL_MGMT, WANPIPE_IOCTL_SET_IDLE_TX_BUFFER,   WANPIPE_IOCTL_API_POLL, WANPIPE_IOCTL_SET_SHARED_EVENT, WANPIPE_IOCTL_PORT_MGMT, WANPIPE_IOCTL_PORT_CONFIG,   WANPIPE_IOCTL_API_CMD, WANPIPE_IOCTL_PIPEMON, WANPIPE_IOCTL_SNMP, WANPIPE_IOCTL_SNMP_IFSPEED,   WANPIPE_IOCTL_DEVEL, WANPIPE_IOCTL_WRITE_NON_BLOCKING, WANPIPE_IOCTL_READ_NON_BLOCKING, WANPIPE_IOCTL_CDEV_CTRL,   WANPIPE_IOCTL_LOGGER_CMD }
	Wanpipe IOCTL Commands. More...
enum	WANPIPE_IOCTL_PIPEMON_CMDS {   WANPIPEMON_ROUTER_UP_TIME = 0x50, WANPIPEMON_ENABLE_TRACING, WANPIPEMON_DISABLE_TRACING, WANPIPEMON_GET_TRACE_INFO,   WANPIPEMON_READ_CODE_VERSION, WANPIPEMON_FLUSH_OPERATIONAL_STATS, WANPIPEMON_OPERATIONAL_STATS, WANPIPEMON_READ_OPERATIONAL_STATS,   WANPIPEMON_READ_CONFIGURATION, WANPIPEMON_READ_COMMS_ERROR_STATS, WANPIPEMON_FLUSH_COMMS_ERROR_STATS, WANPIPEMON_AFT_LINK_STATUS,   WANPIPEMON_AFT_MODEM_STATUS, WANPIPEMON_AFT_HWEC_STATUS, WANPIPEMON_DIGITAL_LOOPTEST, WANPIPEMON_SET_FT1_MODE,   WANPIPEMON_GET_OPEN_HANDLES_COUNTER, WANPIPEMON_GET_CARD_TYPE, WANPIPEMON_API_NOT_USED, WANPIPEMON_GET_HW_MAC_ADDR,   WANPIPEMON_FLUSH_TX_BUFFERS, WANPIPEMON_EC_IOCTL, WANPIPEMON_SET_RBS_BITS, WANPIPEMON_GET_RBS_BITS,   WANPIPEMON_AFT_CUSTOMER_ID, WANPIPEMON_FT1_READ_STATUS, WANPIPEMON_DRIVER_STAT_IFSEND, WANPIPEMON_DRIVER_STAT_INTR,   WANPIPEMON_DRIVER_STAT_GEN, WANPIPEMON_FLUSH_DRIVER_STATS, WANPIPEMON_GET_IBA_DATA, WANPIPEMON_TDM_API,   WANPIPEMON_READ_PERFORMANCE_STATS, WANPIPEMON_FLUSH_PERFORMANCE_STATS, WANPIPEMON_GET_BIOS_ENCLOSURE3_SERIAL_NUMBER, WANPIPEMON_ENABLE_BERT,   WANPIPEMON_DISABLE_BERT, WANPIPEMON_GET_BERT_STATUS, WANPIPEMON_PERFORMANCE_STATS, WANPIPEMON_LED_CTRL,   WANPIPEMON_CHAN_SEQ_DEBUGGING, WANPIPEMON_GEN_FIFO_ERR_TX, WANPIPEMON_GEN_FIFO_ERR_RX, WANPIPEMON_GEN_FE_SYNC_ERR,   WANPIPEMON_PROTOCOL_PRIVATE }
	Commands used with WANPIPE_IOCTL_PIPEMON IOCTL. More...
enum	wp_bert_sequence_type { WP_BERT_RANDOM_SEQUENCE = 1, WP_BERT_ASCENDANT_SEQUENCE, WP_BERT_DESCENDANT_SEQUENCE }
enum	wanpipe_api_cmds {   WP_API_CMD_GET_USR_MTU_MRU, WP_API_CMD_SET_USR_PERIOD, WP_API_CMD_GET_USR_PERIOD, WP_API_CMD_SET_HW_MTU_MRU,   WP_API_CMD_GET_HW_MTU_MRU, WP_API_CMD_SET_CODEC, WP_API_CMD_GET_CODEC, WP_API_CMD_SET_POWER_LEVEL,   WP_API_CMD_GET_POWER_LEVEL, WP_API_CMD_TOGGLE_RX, WP_API_CMD_TOGGLE_TX, WP_API_CMD_GET_HW_CODING,   WP_API_CMD_SET_HW_CODING, WP_API_CMD_GET_FULL_CFG, WP_API_CMD_SET_EC_TAP, WP_API_CMD_GET_EC_TAP,   WP_API_CMD_ENABLE_RBS_EVENTS, WP_API_CMD_DISABLE_RBS_EVENTS, WP_API_CMD_WRITE_RBS_BITS, WP_API_CMD_READ_RBS_BITS,   WP_API_CMD_GET_STATS, WP_API_CMD_FLUSH_BUFFERS, WP_API_CMD_FLUSH_TX_BUFFERS, WP_API_CMD_FLUSH_RX_BUFFERS,   WP_API_CMD_FLUSH_EVENT_BUFFERS, WP_API_CMD_READ_EVENT, WP_API_CMD_SET_EVENT, WP_API_CMD_SET_RX_GAINS,   WP_API_CMD_SET_TX_GAINS, WP_API_CMD_CLEAR_RX_GAINS, WP_API_CMD_CLEAR_TX_GAINS, WP_API_CMD_GET_FE_ALARMS,   WP_API_CMD_ENABLE_HWEC, WP_API_CMD_DISABLE_HWEC, WP_API_CMD_SET_FE_STATUS, WP_API_CMD_GET_FE_STATUS,   WP_API_CMD_GET_HW_DTMF, WP_API_CMD_DRV_MGMNT, WP_API_CMD_RESET_STATS, WP_API_CMD_DRIVER_VERSION,   WP_API_CMD_FIRMWARE_VERSION, WP_API_CMD_CPLD_VERSION, WP_API_CMD_OPEN_CNT, WP_API_CMD_SET_TX_Q_SIZE,   WP_API_CMD_GET_TX_Q_SIZE, WP_API_CMD_SET_RX_Q_SIZE, WP_API_CMD_GET_RX_Q_SIZE, WP_API_CMD_EVENT_CTRL,   WP_API_CMD_NOTSUPP, WP_API_CMD_SET_RM_RXFLASHTIME, WP_API_CMD_SET_IDLE_FLAG, WP_API_CMD_GET_HW_EC,   WP_API_CMD_GET_HW_FAX_DETECT, WP_API_CMD_ENABLE_LOOP, WP_API_CMD_DISABLE_LOOP, WP_API_CMD_BUFFER_MULTIPLIER,   WP_API_CMD_GET_HW_EC_CHAN, WP_API_CMD_GET_HW_EC_PERSIST, WP_API_CMD_EC_IOCTL, WP_API_CMD_SS7_FORCE_RX,   WP_API_CMD_SS7_GET_CFG_STATUS, WP_API_CMD_GEN_FIFO_ERR_TX =500, WP_API_CMD_GEN_FIFO_ERR_RX, WP_API_CMD_START_CHAN_SEQ_DEBUG,   WP_API_CMD_STOP_CHAN_SEQ_DEBUG }
	Commands used with WANPIPE_IOCTL_API_CMD IOCTL. More...
enum	wanpipe_cdev_ctrl_cmds {   WP_CDEV_CMD_SET_DPC_TIMEDIFF_MONITORING_OPTION =1, WP_CDEV_CMD_SET_TX_INTERRUPT_TIMEDIFF_MONITORING_OPTION, WP_CDEV_CMD_SET_RX_INTERRUPT_TIMEDIFF_MONITORING_OPTION, WP_CDEV_CMD_PRINT_INTERRUPT_TIMEDIFF_MONITORING_INFO,   WP_CDEV_CMD_GET_INTERFACE_NAME }
	Commands used with WANPIPE_IOCTL_CDEV_CTRL IOCTL.
enum	wanpipe_api_events {   WP_API_EVENT_NONE, WP_API_EVENT_RBS, WP_API_EVENT_ALARM, WP_API_EVENT_DTMF,   WP_API_EVENT_RM_DTMF, WP_API_EVENT_RXHOOK, WP_API_EVENT_RING, WP_API_EVENT_RING_DETECT,   WP_API_EVENT_RING_TRIP_DETECT, WP_API_EVENT_TONE, WP_API_EVENT_TXSIG_KEWL, WP_API_EVENT_TXSIG_START,   WP_API_EVENT_TXSIG_OFFHOOK, WP_API_EVENT_TXSIG_ONHOOK, WP_API_EVENT_ONHOOKTRANSFER, WP_API_EVENT_SETPOLARITY,   WP_API_EVENT_BRI_CHAN_LOOPBACK, WP_API_EVENT_LINK_STATUS, WP_API_EVENT_MODEM_STATUS, WP_API_EVENT_POLARITY_REVERSE,   WP_API_EVENT_FAX_DETECT, WP_API_EVENT_SET_RM_TX_GAIN, WP_API_EVENT_SET_RM_RX_GAIN, WP_API_EVENT_FAX_1100,   WP_API_EVENT_FAX_2100, WP_API_EVENT_FAX_2100_WSPR }
	Events available on wanpipe api device. More...

Detailed Description

WANPIPE(tm) Driver API Interface -.

Provides IO/Event API Only

Authors: Nenad Corbic ncorb.nosp@m.ic@s.nosp@m.angom.nosp@m.a.co.nosp@m.m David Rokhvarg david.nosp@m.r@sa.nosp@m.ngoma.nosp@m..com

Copyright (c) 2007 - 08, Sangoma Technologies All rights reserved.

• Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
  • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  • Neither the name of the Sangoma Technologies nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY Sangoma Technologies ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL Sangoma Technologies BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

Definition in file wanpipe_api_iface.h.

Macro Definition Documentation

#define WP_BERT_DECODE_SEQUENCE_TYPE

(

sequence

)

Value:

((sequence) == WP_BERT_RANDOM_SEQUENCE) ? "WP_BERT_RANDOM_SEQUENCE" :           \
    ((sequence) == WP_BERT_ASCENDANT_SEQUENCE) ? "WP_BERT_ASCENDANT_SEQUENCE" :     \
    ((sequence) == WP_BERT_DESCENDANT_SEQUENCE) ? "WP_BERT_DESCENDANT_SEQUENCE" :   \
        "(Unknown BERT sequence)"

Definition at line 197 of file wanpipe_api_iface.h.

#define WP_API_EVENT_MODE_DECODE

(

mode

)

Value:

((mode) == WP_API_EVENT_ENABLE) ? "Enable" :        \
        ((mode) == WP_API_EVENT_DISABLE) ? "Disable" :      \
                        "(Unknown mode)"

Decode disable/enable command.

Definition at line 385 of file wanpipe_api_iface.h.

#define WP_API_EVENT_RXHOOK_DECODE

(

state

)

Value:

((state) == WP_API_EVENT_RXHOOK_OFF) ? "Off-hook" : \
        ((state) == WP_API_EVENT_RXHOOK_FLASH) ? "Flash" :  \
        ((state) == WP_API_EVENT_RXHOOK_ON) ? "On-hook" :   \
                        "(Unknown state)"

Print out the hook state.

Definition at line 420 of file wanpipe_api_iface.h.

#define WP_API_EVENT_RING_DECODE

(

state

)

Value:

((state) == WP_API_EVENT_RING_PRESENT) ? "Ring Present" :   \
        ((state) == WP_API_EVENT_RING_STOP) ? "Ring Stop" : \
                        "(Unknown state)"

Print out the Ring state.

Definition at line 435 of file wanpipe_api_iface.h.

#define WP_API_EVENT_RING_TRIP_DECODE

(

state

)

Value:

((state) == WP_API_EVENT_RING_TRIP_PRESENT) ? "Ring Present" :  \
        ((state) == WP_API_EVENT_RING_TRIP_STOP) ? "Ring Stop" :    \
                        "(Unknown state)"

Print out the Ring Trip state.

Definition at line 450 of file wanpipe_api_iface.h.

#define WP_API_EVENT_LINK_STATUS_DECODE

(

status

)

Value:

((status) == WP_API_EVENT_LINK_STATUS_CONNECTED) ? "Connected" :        \
        ((status) == WP_API_EVENT_LINK_STATUS_DISCONNECTED)  ? "Disconnected" :     \
                            "Unknown"

Print out the Link state.

Definition at line 465 of file wanpipe_api_iface.h.

#define WP_API_EVENT_POLARITY_REVERSE_DECODE

(

polarity_reverse

)

Value:

((polarity_reverse) == WP_API_EVENT_POL_REV_POS_TO_NEG) ? "+ve to -ve" :        \
        ((polarity_reverse) == WP_API_EVENT_POL_REV_NEG_TO_POS)  ? "-ve to +ve" :       \
                            "Unknown"

Print out the Polarity state.

Definition at line 482 of file wanpipe_api_iface.h.

#define WP_AFT_RX_ERROR_SUM

(

chan_stats

)

Value:

chan_stats.rx_errors+ \
                                        chan_stats.rx_dropped+ \
                                        chan_stats.rx_length_errors + \
                                        chan_stats.rx_crc_errors + \
                                        chan_stats.rx_frame_errors + \
                                        chan_stats.rx_fifo_errors + \
                                        chan_stats.rx_missed_errors + \
                                        chan_stats.rx_hdlc_abort_counter

Definition at line 616 of file wanpipe_api_iface.h.

#define WP_AFT_TX_ERROR_SUM

(

chan_stats

)

Value:

chan_stats.tx_errors+ \
                                        chan_stats.tx_dropped + \
                                        chan_stats.tx_aborted_errors + \
                                        chan_stats.tx_carrier_errors + \
                                        chan_stats.tx_fifo_errors+ \
                                        chan_stats.tx_heartbeat_errors + \
                                        chan_stats.tx_window_errors

Definition at line 625 of file wanpipe_api_iface.h.

Enumeration Type Documentation

enum WANPIPE_IOCTL_CODE

Wanpipe IOCTL Commands.

Wanpipe System/IOCTL Commands for API Devices The system calls perform, configration/management/operation/io

Enumerator
WANPIPE_IOCTL_WRITE	Write cmd, Windows Only
WANPIPE_IOCTL_READ	Read cmd, Windows Only
WANPIPE_IOCTL_MGMT	Mgmnt cmd, driver/port configuration/debugging
WANPIPE_IOCTL_SET_IDLE_TX_BUFFER	Set idle buffer on a device
WANPIPE_IOCTL_API_POLL	Poll cmd, Windows Only
WANPIPE_IOCTL_SET_SHARED_EVENT	Shared Event cmd, Windows Only
WANPIPE_IOCTL_PORT_MGMT	Port Mgmnt Event cmd
WANPIPE_IOCTL_PORT_CONFIG	Port Config Event
WANPIPE_IOCTL_API_CMD	Wanpipe API command
WANPIPE_IOCTL_PIPEMON	PIPEMON command, debugging
WANPIPE_IOCTL_SNMP	SNMP statistics, not implemented
WANPIPE_IOCTL_SNMP_IFSPEED	SNMP statistics, not implemented
WANPIPE_IOCTL_DEVEL	Development Cmds, use only for hw debugging
WANPIPE_IOCTL_WRITE_NON_BLOCKING	Non-Blocking Write cmd, Windows Only
WANPIPE_IOCTL_READ_NON_BLOCKING	Non-Blocking Read cmd, Windows Only
WANPIPE_IOCTL_CDEV_CTRL	Non-Blocking Cdev control cmd, Windows Only
WANPIPE_IOCTL_LOGGER_CMD	Wanpipe Logger command

Definition at line 108 of file wanpipe_api_iface.h.

                        {
    WANPIPE_IOCTL_WRITE=1,
    WANPIPE_IOCTL_READ,
    WANPIPE_IOCTL_MGMT,
    WANPIPE_IOCTL_SET_IDLE_TX_BUFFER,
    WANPIPE_IOCTL_API_POLL,
    WANPIPE_IOCTL_SET_SHARED_EVENT,
    WANPIPE_IOCTL_PORT_MGMT,
    WANPIPE_IOCTL_PORT_CONFIG,
    WANPIPE_IOCTL_API_CMD,
    WANPIPE_IOCTL_PIPEMON,
    WANPIPE_IOCTL_SNMP,
    WANPIPE_IOCTL_SNMP_IFSPEED,
    WANPIPE_IOCTL_DEVEL,
    WANPIPE_IOCTL_WRITE_NON_BLOCKING,
    WANPIPE_IOCTL_READ_NON_BLOCKING,
    WANPIPE_IOCTL_CDEV_CTRL,
    WANPIPE_IOCTL_LOGGER_CMD,
};

enum WANPIPE_IOCTL_PIPEMON_CMDS

Commands used with WANPIPE_IOCTL_PIPEMON IOCTL.

Enumerator
WANPIPEMON_ROUTER_UP_TIME	Check router up time
WANPIPEMON_ENABLE_TRACING	Enable data tracing
WANPIPEMON_DISABLE_TRACING	Disable data tracing
WANPIPEMON_GET_TRACE_INFO	Get traced data frame
WANPIPEMON_READ_CODE_VERSION	Get HW Firmware Version
WANPIPEMON_FLUSH_OPERATIONAL_STATS	Flush operational stats
WANPIPEMON_OPERATIONAL_STATS	Get operational stats
WANPIPEMON_READ_OPERATIONAL_STATS	Get operational stats
WANPIPEMON_READ_CONFIGURATION	Get device configuration
WANPIPEMON_READ_COMMS_ERROR_STATS	Read comm statistics
WANPIPEMON_FLUSH_COMMS_ERROR_STATS	Flush comm statistics
WANPIPEMON_AFT_LINK_STATUS	Get Device Link Status
WANPIPEMON_AFT_MODEM_STATUS	Get Device Mode Status (Serial Cards Only)
WANPIPEMON_AFT_HWEC_STATUS	Get Device HWEC Status (Supported or Not)
WANPIPEMON_DIGITAL_LOOPTEST	Perform a digial loop data integrity test
WANPIPEMON_SET_FT1_MODE	Set T1 Mode - Legacy Deprecated
WANPIPEMON_GET_OPEN_HANDLES_COUNTER	Get number of open handles on this device
WANPIPEMON_GET_CARD_TYPE	Get card type A101/2/4/8/A200
WANPIPEMON_API_NOT_USED	Not Used
WANPIPEMON_GET_HW_MAC_ADDR	Get HWE MAC Address (Used by S518 Adsl)
WANPIPEMON_FLUSH_TX_BUFFERS	Flush Tx Buffers
WANPIPEMON_EC_IOCTL	HWEC Commands
WANPIPEMON_SET_RBS_BITS	Set RBS Bits
WANPIPEMON_GET_RBS_BITS	Read RBS Bits
WANPIPEMON_AFT_CUSTOMER_ID	Get Unique Custome ID
WANPIPEMON_FT1_READ_STATUS	Read T1/E1 Status
WANPIPEMON_DRIVER_STAT_IFSEND	Driver statistics ifsend()
WANPIPEMON_DRIVER_STAT_INTR	Driver statistics interrupts
WANPIPEMON_DRIVER_STAT_GEN	Driver statistics general
WANPIPEMON_FLUSH_DRIVER_STATS	Flush driver statistics
WANPIPEMON_GET_IBA_DATA	Get IBA Data - Deprecated not used
WANPIPEMON_TDM_API	Windows Legacy- TDM API commands
WANPIPEMON_GET_BIOS_ENCLOSURE3_SERIAL_NUMBER	Get Enclosure3 Serial Number from Motherboard BIOS.
WANPIPEMON_ENABLE_BERT	Start BERT for the interface.
WANPIPEMON_DISABLE_BERT	Stop BERT for the interface.
WANPIPEMON_GET_BERT_STATUS	Get BERT status/statistics (Locked/Not Locked)
WANPIPEMON_PERFORMANCE_STATS	Control performance performance statistics
WANPIPEMON_LED_CTRL	Control led on a port - on/off
WANPIPEMON_CHAN_SEQ_DEBUGGING	Debugging only - enable/disable span level sequence debugging
WANPIPEMON_GEN_FIFO_ERR_TX	Debugging only - generate tx fifo error
WANPIPEMON_GEN_FIFO_ERR_RX	Debugging only - generate rx fifo error
WANPIPEMON_GEN_FE_SYNC_ERR	Debugging only - generate fe sync error
WANPIPEMON_PROTOCOL_PRIVATE	Private Wanpipemon commands used by lower layers

Definition at line 133 of file wanpipe_api_iface.h.

                                {
    WANPIPEMON_ROUTER_UP_TIME = 0x50,
    WANPIPEMON_ENABLE_TRACING,
    WANPIPEMON_DISABLE_TRACING,
    WANPIPEMON_GET_TRACE_INFO,
    WANPIPEMON_READ_CODE_VERSION,
    WANPIPEMON_FLUSH_OPERATIONAL_STATS,
    WANPIPEMON_OPERATIONAL_STATS,
    WANPIPEMON_READ_OPERATIONAL_STATS,
    WANPIPEMON_READ_CONFIGURATION,
    WANPIPEMON_READ_COMMS_ERROR_STATS,
    WANPIPEMON_FLUSH_COMMS_ERROR_STATS,
    WANPIPEMON_AFT_LINK_STATUS,
    WANPIPEMON_AFT_MODEM_STATUS,
    WANPIPEMON_AFT_HWEC_STATUS,
    WANPIPEMON_DIGITAL_LOOPTEST,
    WANPIPEMON_SET_FT1_MODE,
    WANPIPEMON_GET_OPEN_HANDLES_COUNTER,
    WANPIPEMON_GET_CARD_TYPE,
    WANPIPEMON_API_NOT_USED,
    WANPIPEMON_GET_HW_MAC_ADDR,
    WANPIPEMON_FLUSH_TX_BUFFERS,
    WANPIPEMON_EC_IOCTL,
    WANPIPEMON_SET_RBS_BITS,
    WANPIPEMON_GET_RBS_BITS,
    WANPIPEMON_AFT_CUSTOMER_ID,
    WANPIPEMON_FT1_READ_STATUS,
    WANPIPEMON_DRIVER_STAT_IFSEND,
    WANPIPEMON_DRIVER_STAT_INTR,
    WANPIPEMON_DRIVER_STAT_GEN,
    WANPIPEMON_FLUSH_DRIVER_STATS,
    WANPIPEMON_GET_IBA_DATA,
    WANPIPEMON_TDM_API,
    WANPIPEMON_READ_PERFORMANCE_STATS,
    WANPIPEMON_FLUSH_PERFORMANCE_STATS,
    WANPIPEMON_GET_BIOS_ENCLOSURE3_SERIAL_NUMBER,
    WANPIPEMON_ENABLE_BERT,
    WANPIPEMON_DISABLE_BERT,
    WANPIPEMON_GET_BERT_STATUS,
    WANPIPEMON_PERFORMANCE_STATS,
    WANPIPEMON_LED_CTRL,
    /* Do not add any non-debugging commands below */
    WANPIPEMON_CHAN_SEQ_DEBUGGING,
    WANPIPEMON_GEN_FIFO_ERR_TX,
    WANPIPEMON_GEN_FIFO_ERR_RX,
    WANPIPEMON_GEN_FE_SYNC_ERR,
    /* All Public commands must be between WANPIPEMON_ROUTER_UP_TIME and WANPIPEMON_PROTOCOL_PRIVATE. */

    WANPIPEMON_PROTOCOL_PRIVATE
};

enum wanpipe_api_cmds

Commands used with WANPIPE_IOCTL_API_CMD IOCTL.

Enumerator
WP_API_CMD_GET_USR_MTU_MRU	Get Device tx/rx (CHUNK) in bytes, multiple of 8
WP_API_CMD_SET_USR_PERIOD	Set chunk period in miliseconds eg: 1ms = 8bytes
WP_API_CMD_GET_USR_PERIOD	Get configured chunk period in miliseconds eg: 1ms = 8bytes
WP_API_CMD_SET_HW_MTU_MRU	Set hw tx/rx chunk in bytes eg: 1ms = 8bytes
WP_API_CMD_GET_HW_MTU_MRU	Get hw tx/rx chunk in bytes eg: 1ms = 8bytes
WP_API_CMD_SET_CODEC	Set device codec (ulaw/alaw/slinear)
WP_API_CMD_GET_CODEC	Get configured device codec (ulaw/alaw/slinear)
WP_API_CMD_SET_POWER_LEVEL	Not implemented
WP_API_CMD_GET_POWER_LEVEL	Not implemented
WP_API_CMD_TOGGLE_RX	Disable/Enable RX on this device
WP_API_CMD_TOGGLE_TX	Disable/Enable TX on this device
WP_API_CMD_GET_HW_CODING	Get HW coding configuration (ulaw or alaw)
WP_API_CMD_SET_HW_CODING	Set HW coding (ulaw or alaw)
WP_API_CMD_GET_FULL_CFG	Get full device configuration
WP_API_CMD_SET_EC_TAP	Not implemented
WP_API_CMD_GET_EC_TAP	Not implemented
WP_API_CMD_ENABLE_RBS_EVENTS	Enable RBS Event monitoring
WP_API_CMD_DISABLE_RBS_EVENTS	Disable RBS Event monitoring
WP_API_CMD_WRITE_RBS_BITS	Write RBS bits (ABCD)
WP_API_CMD_READ_RBS_BITS	Read RBS bits (ABCD)
WP_API_CMD_GET_STATS	Get device statistics
WP_API_CMD_FLUSH_BUFFERS	Flush Buffers
WP_API_CMD_FLUSH_TX_BUFFERS	Flush Tx Buffers
WP_API_CMD_FLUSH_RX_BUFFERS	Flush Rx Buffers
WP_API_CMD_FLUSH_EVENT_BUFFERS	Flush Event Buffers
WP_API_CMD_GET_HW_DTMF	Get Status of the HW DTMF. Enabled(1) or Disabled(0)
WP_API_CMD_RESET_STATS	Reset device statistics
WP_API_CMD_DRIVER_VERSION	Driver Version
WP_API_CMD_FIRMWARE_VERSION	Firmware Version
WP_API_CMD_CPLD_VERSION	CPLD Version
WP_API_CMD_OPEN_CNT	Open Cnt
WP_API_CMD_SET_TX_Q_SIZE	Set TX Queue Size
WP_API_CMD_GET_TX_Q_SIZE	Get TX Queue Size
WP_API_CMD_SET_RX_Q_SIZE	Set RX Queue Size
WP_API_CMD_GET_RX_Q_SIZE	Get RX Queue Size
WP_API_CMD_SET_RM_RXFLASHTIME	Set rxflashtime for FXS
WP_API_CMD_SET_IDLE_FLAG	Set Idle Flag (char) for a BitStream (Voice) channel
WP_API_CMD_GET_HW_EC	Check Status of HW Echo Cancelation. Enabled(1) or Disabled(0)
WP_API_CMD_GET_HW_FAX_DETECT	Check Status of HW Fax Detect. Enabled(1) or Disabled(0)
WP_API_CMD_ENABLE_LOOP	Remote Loop the channel
WP_API_CMD_DISABLE_LOOP	Disable remote loop
WP_API_CMD_BUFFER_MULTIPLIER	Set Buffer Multiplier - for SPAN voice mode only
WP_API_CMD_GET_HW_EC_CHAN	Get status of hwec for the current timeslot
WP_API_CMD_GET_HW_EC_PERSIST	Check if hwec persist mode is on or off
WP_API_CMD_EC_IOCTL	Execute command in HWEC module of the Driver
WP_API_CMD_SS7_FORCE_RX	Force SS7 Receive
WP_API_CMD_SS7_GET_CFG_STATUS	Get current ss7 configuration status

Definition at line 239 of file wanpipe_api_iface.h.

{

    WP_API_CMD_GET_USR_MTU_MRU,
    WP_API_CMD_SET_USR_PERIOD,
    WP_API_CMD_GET_USR_PERIOD,
    WP_API_CMD_SET_HW_MTU_MRU,
    WP_API_CMD_GET_HW_MTU_MRU,
    WP_API_CMD_SET_CODEC,
    WP_API_CMD_GET_CODEC,
    WP_API_CMD_SET_POWER_LEVEL,
    WP_API_CMD_GET_POWER_LEVEL,
    WP_API_CMD_TOGGLE_RX,
    WP_API_CMD_TOGGLE_TX,
    WP_API_CMD_GET_HW_CODING,
    WP_API_CMD_SET_HW_CODING,
    WP_API_CMD_GET_FULL_CFG,
    WP_API_CMD_SET_EC_TAP,
    WP_API_CMD_GET_EC_TAP,
    WP_API_CMD_ENABLE_RBS_EVENTS,
    WP_API_CMD_DISABLE_RBS_EVENTS,
    WP_API_CMD_WRITE_RBS_BITS,
    WP_API_CMD_READ_RBS_BITS,
    WP_API_CMD_GET_STATS,
    WP_API_CMD_FLUSH_BUFFERS,
    WP_API_CMD_FLUSH_TX_BUFFERS,
    WP_API_CMD_FLUSH_RX_BUFFERS,
    WP_API_CMD_FLUSH_EVENT_BUFFERS,
    WP_API_CMD_READ_EVENT,
    WP_API_CMD_SET_EVENT,
    WP_API_CMD_SET_RX_GAINS,
    WP_API_CMD_SET_TX_GAINS,
    WP_API_CMD_CLEAR_RX_GAINS,
    WP_API_CMD_CLEAR_TX_GAINS,
    WP_API_CMD_GET_FE_ALARMS,
    WP_API_CMD_ENABLE_HWEC,
    WP_API_CMD_DISABLE_HWEC,
    WP_API_CMD_SET_FE_STATUS,
    WP_API_CMD_GET_FE_STATUS,
    WP_API_CMD_GET_HW_DTMF,
    WP_API_CMD_DRV_MGMNT,
    WP_API_CMD_RESET_STATS,
    WP_API_CMD_DRIVER_VERSION,
    WP_API_CMD_FIRMWARE_VERSION,
    WP_API_CMD_CPLD_VERSION,
    WP_API_CMD_OPEN_CNT,
    WP_API_CMD_SET_TX_Q_SIZE,
    WP_API_CMD_GET_TX_Q_SIZE,
    WP_API_CMD_SET_RX_Q_SIZE,
    WP_API_CMD_GET_RX_Q_SIZE,
    WP_API_CMD_EVENT_CTRL,
    WP_API_CMD_NOTSUPP,
    WP_API_CMD_SET_RM_RXFLASHTIME,
    WP_API_CMD_SET_IDLE_FLAG,
    WP_API_CMD_GET_HW_EC,
    WP_API_CMD_GET_HW_FAX_DETECT,
    WP_API_CMD_ENABLE_LOOP,
    WP_API_CMD_DISABLE_LOOP,
    WP_API_CMD_BUFFER_MULTIPLIER,
    WP_API_CMD_GET_HW_EC_CHAN,
    WP_API_CMD_GET_HW_EC_PERSIST,
    WP_API_CMD_EC_IOCTL,
    WP_API_CMD_SS7_FORCE_RX,
    WP_API_CMD_SS7_GET_CFG_STATUS,
    /* Add only debugging commands here */
    WP_API_CMD_GEN_FIFO_ERR_TX=500,
    WP_API_CMD_GEN_FIFO_ERR_RX,
    WP_API_CMD_START_CHAN_SEQ_DEBUG,
    WP_API_CMD_STOP_CHAN_SEQ_DEBUG
};

enum wanpipe_api_events

Events available on wanpipe api device.

The events are can be enabled or disabled by application. Events are passed up to the user application by the driver. If event occours and applicatoin has enabled such event, then event is passed up to the api device. User application will receive a poll() signal idicating that event has occoured.

Enumerator
WP_API_EVENT_RBS	Tx: Enable Disable RBS Opertaion Mode (T1: RBS E1: CAS)
WP_API_EVENT_DTMF	Enable Disable HW DTMF Detection
WP_API_EVENT_FAX_DETECT	Enable Disable HW Fax Detection
WP_API_EVENT_SET_RM_TX_GAIN	Set Tx Gain for FXO/FXS
WP_API_EVENT_SET_RM_RX_GAIN	Set Rx Gain for FXO/FXS
WP_API_EVENT_FAX_1100	IN: FAX 1100 Tone event
WP_API_EVENT_FAX_2100	IN: FAX 2100 Tone event
WP_API_EVENT_FAX_2100_WSPR	IN: FAX 2100 WSPR Tone event

Definition at line 336 of file wanpipe_api_iface.h.

{
    WP_API_EVENT_NONE,
    WP_API_EVENT_RBS,
    WP_API_EVENT_ALARM,
    WP_API_EVENT_DTMF,
    WP_API_EVENT_RM_DTMF,
    WP_API_EVENT_RXHOOK,
    WP_API_EVENT_RING,
    WP_API_EVENT_RING_DETECT,
    WP_API_EVENT_RING_TRIP_DETECT,
    WP_API_EVENT_TONE,
    WP_API_EVENT_TXSIG_KEWL,
    WP_API_EVENT_TXSIG_START,
    WP_API_EVENT_TXSIG_OFFHOOK,
    WP_API_EVENT_TXSIG_ONHOOK,
    WP_API_EVENT_ONHOOKTRANSFER,
    WP_API_EVENT_SETPOLARITY,
    WP_API_EVENT_BRI_CHAN_LOOPBACK,
    WP_API_EVENT_LINK_STATUS,
    WP_API_EVENT_MODEM_STATUS,
    WP_API_EVENT_POLARITY_REVERSE,
    WP_API_EVENT_FAX_DETECT,
    WP_API_EVENT_SET_RM_TX_GAIN,
    WP_API_EVENT_SET_RM_RX_GAIN,
    WP_API_EVENT_FAX_1100,
    WP_API_EVENT_FAX_2100,
    WP_API_EVENT_FAX_2100_WSPR,
};
