WANPIPE(tm) Driver API Headers and Defines. More...

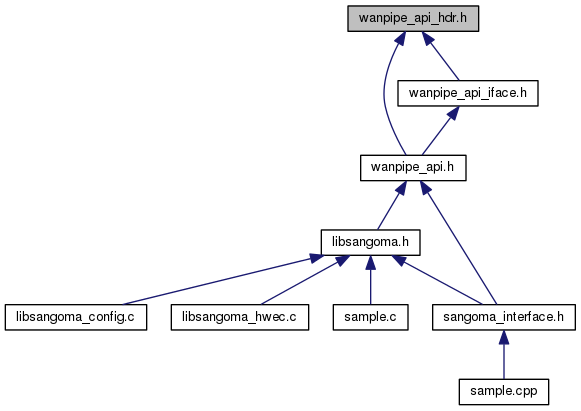

This graph shows which files directly or indirectly include this file:

Classes
struct	wp_api_event
	Wanpipe API Event Structure. More...

struct	wp_api_hdr
	Wanpipe API Header Structure. More...

struct	wp_api_element
	Wanpipe API Element contains header and data. More...

struct	wan_iovec
	Memory Descriptor of a single buffer. This structure used internally by libsangoma. More...

struct	wan_iovec_list
	Fixed-length List of Memory Descriptors. More...

struct	wan_msghdr
	Variable-length List of Memory Descriptors. More...

struct	_API_POLL_STRUCT
	Windows poll structure used to implement blocking poll for read/write/event. More...

Macros
#define	WAN_MAX_EVENT_SZ 64
	Size of wanpipe api header used in tx/rx. More...

#define	WAN_MAX_EVENT_SZ_UNION WAN_MAX_EVENT_SZ-(sizeof(u_int8_t)4)-(sizeof(u_int32_t)2)

#define	wp_api_event_type event_type

#define	wp_api_event_mode mode

#define	wp_api_event_channel channel

#define	wp_api_event_span span

#define	wp_api_event_alarm te1_alarm.alarm

#define	wp_api_event_rbs_bits te1_rbs.rbs_bits

#define	wp_api_event_hook_state rm_hook.state

#define	wp_api_event_hook_sig rm_hook.sig

#define	wp_api_event_ring_state rm_ring.state

#define	wp_api_event_tone_type rm_tone.type

#define	wp_api_event_dtmf_digit dtmf.digit

#define	wp_api_event_dtmf_type dtmf.type

#define	wp_api_event_dtmf_port dtmf.port

#define	wp_api_event_ohttimer rm_common.ohttimer

#define	wp_api_event_polarity rm_common.polarity

#define	wp_api_event_polarity_reverse rm_common.polarity_reverse

#define	wp_api_event_link_status linkstatus.status

#define	wp_api_event_serial_status serial.status

#define	wp_api_event_time_stamp_sec time_stamp_sec

#define	wp_api_event_time_stamp_usec time_stamp_usec

#define	wp_api_event_gain_value rm_gain.gain

#define	WAN_MAX_HDR_SZ 64
	Size of wanpipe api header used in tx/rx. More...

#define	WAN_MAX_HDR_SZ_UNION WAN_MAX_HDR_SZ-sizeof(u_int8_t)-sizeof(u_int16_t)-(sizeof(u_int32_t)*2)

#define	wp_api_hdr_operation_status operation_status

#define	wp_api_hdr_data_length data_length

#define	wp_api_hdr_time_stamp_sec time_stamp_sec

#define	wp_api_hdr_time_stamp_use time_stamp_usec

#define	wp_api_legacy_rbs_channel aft_legacy_rbs.channel

#define	wp_api_legacy_rbs_status aft_legacy_rbs.status

#define	wp_api_rx_hdr_crc rx_h.crc

#define	wp_api_rx_hdr_error_map rx_h.crc

#define	wp_api_rx_hdr_max_queue_length rx_h.max_rx_queue_length

#define	wp_api_rx_hdr_number_of_frames_in_queue rx_h.current_number_of_frames_in_rx_queue

#define	wp_api_rx_hdr_time_stamp_sec time_stamp_sec

#define	wp_api_rx_hdr_time_stamp_use time_stamp_usec

#define	wp_api_rx_hdr_errors rx_h.errors

#define	wp_api_tx_hdr_max_queue_length tx_h.max_tx_queue_length

#define	wp_api_tx_hdr_number_of_frames_in_queue tx_h.current_number_of_frames_in_tx_queue

#define	wp_api_tx_hdr_tx_idle_packets tx_h.tx_idle_packets

#define	wp_api_tx_hdr_time_stamp_sec time_stamp_sec

#define	wp_api_tx_hdr_time_stamp_use time_stamp_usec

#define	wp_api_tx_hdr_errors tx_h.errors

#define	wp_api_rx_hdr_error_flag operation_status

#define	wp_api_rx_hdr_station operation_status

#define	wp_api_rx_hdr_time_stamp data_length

#define	wp_api_tx_hdr_hdlc_rpt_len rpt.len

#define	wp_api_tx_hdr_hdlc_rpt_data rpt.data

#define	wp_api_tx_hdr_hdlc_rpt_repeat rpt.repeat

#define	wp_api_tx_hdr_aft_ss7_type ss7_hw.type

#define	wp_api_tx_hdr_aft_ss7_force_tx ss7_hw.force_tx

#define	wp_api_tx_hdr_aft_ss7_data ss7_hw.data

#define	wp_api_rx_hdr_xdlc_state xdlc.state

#define	wp_api_rx_hdr_xdlc_address xdlc.address

#define	wp_api_rx_hdr_xdlc_exception xdlc.exception

#define	wan_hdr_xdlc_state xdlc.state

#define	wan_hdr_xdlc_address xdlc.address

#define	wan_hdr_xdlc_exception xdlc.exception

#define	wp_api_rx_hdr_chdlc_error_flag wp_api_rx_hdr_error_flag

#define	wp_api_rx_hdr_chdlc_time_stamp wp_api_rx_hdr_time_stamp

#define	wp_api_rx_hdr_chdlc_time_sec time_stamp_sec

#define	wp_api_rx_hdr_chdlc_time_usec time_stamp_usec

#define	wan_hdr_chdlc_error_flag wp_api_rx_hdr_chdlc_error_flag

#define	wan_hdr_chdlc_time_stamp wp_api_rx_hdr_chdlc_time_stamp

#define	wan_hdr_chdlc_time_sec wp_api_rx_hdr_chdlc_time_sec

#define	wan_hdr_chdlc_time_usec wp_api_rx_hdr_chdlc_time_usec

#define	wp_api_rx_hdr_bitstrm_error_flag wp_api_rx_hdr_error_flag

#define	wp_api_rx_hdr_bitstrm_time_stamp wp_api_rx_hdr_time_stamp

#define	wp_api_rx_hdr_bitstrm_time_sec time_stamp_sec

#define	wp_api_rx_hdr_bitstrm_time_usec time_stamp_usec

#define	wp_api_rx_hdr_bitstrm_channel bitstrm.channel

#define	wp_api_rx_hdr_bitstrm_direction bitstrm.direction

#define	wan_hdr_bitstrm_error_flag wp_api_rx_hdr_bitstrm_error_flag

#define	wan_hdr_bitstrm_time_stamp wp_api_rx_hdr_bitstrm_data_length

#define	wan_hdr_bitstrm_time_sec wp_api_rx_hdr_bitstrm_time_sec

#define	wan_hdr_bitstrm_time_usec wp_api_rx_hdr_bitstrm_time_usec

#define	wan_hdr_bitstrm_channel wp_api_rx_hdr_bitstrm_channel

#define	wan_hdr_bitstrm_direction wp_api_rx_hdr_bitstrm_direction

#define	wp_api_rx_hdr_hdlc_error_flag wp_api_rx_hdr_error_flag

#define	wp_api_rx_hdr_hdlc_time_stamp wp_api_rx_hdr_time_stamp

#define	wp_api_rx_hdr_hdlc_time_sec time_stamp_sec

#define	wp_api_rx_hdr_hdlc_time_usec time_stamp_usec

#define	wan_hdr_hdlc_error_flag wp_api_rx_hdr_error_flag

#define	wan_hdr_hdlc_time_stamp wp_api_rx_hdr_time_stamp

#define	wp_api_rx_hdr_lapb_pf lapb.pf

#define	wp_api_rx_hdr_lapb_exception lapb.exception

#define	wp_api_rx_hdr_lapb_time_sec time_stamp_sec

#define	wp_api_rx_hdr_lapb_time_usec time_stamp_usec

#define	wan_hdr_lapb_pf wp_api_rx_hdr_lapb_pf

#define	wan_hdr_lapb_exception wp_api_rx_hdr_lapb_exception

#define	wp_api_rx_hdr_fr_attr wp_api_rx_hdr_error_flag

#define	wp_api_rx_hdr_fr_time_stamp wp_api_rx_hdr_time_stamp

#define	wp_api_rx_hdr_fr_time_sec time_stamp_sec

#define	wp_api_rx_hdr_fr_time_usec time_stamp_usec

#define	wan_hdr_fr_attr wp_api_rx_hdr_fr_attr

#define	wan_hdr_fr_time_stamp wp_api_rx_hdr_fr_time_stamp

#define	wan_hdr_fr_time_sec wp_api_rx_hdr_fr_time_sec

#define	wan_hdr_fr_time_usec wp_api_rx_hdr_fr_time_usec

#define	wp_api_rx_hdr_ss7_legacy_sio wp_api_rx_hdr_error_flag

#define	wp_api_rx_hdr_ss7_legacy_time_stamp wp_api_rx_hdr_time_stamp

#define	wp_api_rx_hdr_event_serial_status serial.status

#define	MAX_NO_DATA_BYTES_IN_FRAME 8188
	Maximum tx/rx data size. More...

#define	wp_api_el_operation_status hdr.wp_api_hdr_operation_status

#define	wp_api_el_data_length hdr.wp_api_hdr_data_length

#define	wp_api_el_time_stamp_sec hdr.wp_api_hdr_time_stamp_sec

#define	wp_api_el_time_stamp_use hdr.wp_api_hdr_time_stamp_use

#define	wp_api_rx_el_crc hdr.wp_api_rx_hdr_crc

#define	wp_api_rx_el_max_queue_length hdr.wp_api_rx_hdr_max_queue_length

#define	wp_api_rx_el_number_of_frames_in_queue hdr.wp_api_rx_hdr_number_of_frames_in_queue

#define	wp_api_tx_el_max_queue_length hdr.wp_api_tx_hdr_max_queue_length

#define	wp_api_tx_el_number_of_frames_in_queue hdr.wp_api_tx_hdr_number_of_frames_in_queue

#define	WAN_IOVEC_LIST_LEN 5

#define	SDLA_DECODE_SANG_STATUS(status)
	Print decode of Sangoma Return Codes.

#define	SANG_SUCCESS(status) (status == SANG_STATUS_SUCCESS)

#define	SANG_ERROR(status) (!SANG_SUCCESS(status))

Typedefs
typedef struct wp_api_event	wp_api_event_t
	Wanpipe API Event Structure.

typedef struct wp_api_hdr	wp_api_hdr_t
	Wanpipe API Header Structure.

typedef struct wp_api_element	wp_api_element_t
	Wanpipe API Element contains header and data.

typedef struct wan_iovec	wan_iovec_t
	Memory Descriptor of a single buffer. This structure used internally by libsangoma.

typedef struct wan_iovec_list	wan_iovec_list_t
	Fixed-length List of Memory Descriptors.

typedef struct wan_msghdr	wan_msghdr_t
	Variable-length List of Memory Descriptors.

typedef struct _API_POLL_STRUCT	API_POLL_STRUCT
	Windows poll structure used to implement blocking poll for read/write/event.

typedef enum SANG_STATUS	SANG_STATUS_T
	Wanpipe API Return codes.

Enumerations
enum	SANG_STATUS { SANG_STATUS_SUCCESS =0, SANG_STATUS_RX_DATA_TIMEOUT, SANG_STATUS_RX_DATA_AVAILABLE, SANG_STATUS_NO_DATA_AVAILABLE, SANG_STATUS_TX_TIMEOUT, SANG_STATUS_TX_DATA_TOO_LONG, SANG_STATUS_TX_DATA_TOO_SHORT, SANG_STATUS_TX_HDR_TOO_SHORT, SANG_STATUS_LINE_DISCONNECTED, SANG_STATUS_PROTOCOL_DISCONNECTED, SANG_STATUS_LINE_CONNECTED, SANG_STATUS_PROTOCOL_CONNECTED, SANG_STATUS_COMMAND_ALREADY_RUNNING, SANG_STATUS_BUFFER_TOO_SMALL, SANG_STATUS_FAILED_TO_LOCK_USER_MEMORY, SANG_STATUS_FAILED_ALLOCATE_MEMORY, SANG_STATUS_INVALID_DEVICE_REQUEST, SANG_STATUS_INVALID_PARAMETER, SANG_STATUS_GENERAL_ERROR, SANG_STATUS_DEVICE_BUSY, SANG_STATUS_INVALID_DEVICE, SANG_STATUS_IO_ERROR, SANG_STATUS_UNSUPPORTED_FUNCTION, SANG_STATUS_UNSUPPORTED_PROTOCOL, SANG_STATUS_DEVICE_ALREADY_EXIST, SANG_STATUS_DEV_INIT_INCOMPLETE, SANG_STATUS_TRACE_QUEUE_EMPTY, SANG_STATUS_OPTION_NOT_SUPPORTED, SANG_STATUS_API_EVENT_AVAILABLE, SANG_STATUS_CAN_NOT_STOP_DEVICE_WHEN_ALREADY_STOPPED, SANG_STATUS_CAN_NOT_RUN_TWO_PORT_CMDS_AT_THE_SAME_TIME, SANG_STATUS_ASSOCIATED_IRP_SYSTEM_BUFFER_NULL_ERROR, SANG_STATUS_STRUCTURE_SIZE_MISMATCH_ERROR, SANG_STATUS_REGISTRY_ERROR =180, SANG_STATUS_IO_PENDING, SANG_STATUS_APIPOLL_TIMEOUT, SANG_STATUS_NO_FREE_BUFFERS, SANG_STATUS_SHARED_EVENT_INIT_ERROR, SANG_STATUS_DATA_QUEUE_EMPTY =190, SANG_STATUS_DATA_QUEUE_FULL, SANG_STATUS_INVALID_IRQL }
	Wanpipe API Return codes. More...

Detailed Description

WANPIPE(tm) Driver API Headers and Defines.

Authors: Nenad Corbic ncorb.nosp@m.ic@s.nosp@m.angom.nosp@m.a.co.nosp@m.m David Rokhvarg david.nosp@m.r@sa.nosp@m.ngoma.nosp@m..com Alex Fledman alex@.nosp@m.sang.nosp@m.oma.c.nosp@m.om

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the Sangoma Technologies nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY Sangoma Technologies ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL Sangoma Technologies BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

Definition in file wanpipe_api_hdr.h.

Macro Definition Documentation

#define WAN_MAX_EVENT_SZ 64

Size of wanpipe api header used in tx/rx.

The WAN_MAX_HDR_SZ is the size of wp_api_event_t structure It can be used to confirm compilation problems. if (sizeof(wp_api_event_t) != WAN_MAX_HDR_SZ) ...

Definition at line 49 of file wanpipe_api_hdr.h.

#define wp_api_event_type event_type

These defines MUST be used to access wp_api_event_t structure. The wp_api_event_t should not be accessed directly, in order to keep backward compile compatibility.

Definition at line 112 of file wanpipe_api_hdr.h.

#define WAN_MAX_HDR_SZ 64

Size of wanpipe api header used in tx/rx.

Wanpipe Rx/Tx API Header Structure

This is a UNIFIED common API Header structure for all protocols and all APIs.

data_length Windows uses this varialbe for data length, Linux legacy uses this variable as time_stamp

The WAN_MAX_HDR_SZ is the size of wp_api_event_t structure It can be used to confirm compilation problems. if (sizeof(wp_api_event_t) != WAN_MAX_HDR_SZ) ...

Definition at line 155 of file wanpipe_api_hdr.h.

#define wp_api_hdr_operation_status operation_status

These defines MUST be used to access wp_api_hdr_t structure. The wp_api_hdr_t should not be accessed directly, in order to keep backward compile compatibility.

Definition at line 234 of file wanpipe_api_hdr.h.

#define wp_api_rx_hdr_error_flag operation_status

Defines below are Deprecated and are for backward compability

Definition at line 263 of file wanpipe_api_hdr.h.

#define MAX_NO_DATA_BYTES_IN_FRAME 8188

Maximum tx/rx data size.

Wanpipe API Element Structure

Definition at line 357 of file wanpipe_api_hdr.h.

Referenced by handle_data().

#define wp_api_el_operation_status hdr.wp_api_hdr_operation_status

These defines MUST be used to access wp_api_element_t structure. The wp_api_element_t should not be accessed directly, in order to keep backward compile compatibility.

Definition at line 384 of file wanpipe_api_hdr.h.

Enumeration Type Documentation

enum SANG_STATUS

Wanpipe API Return codes.

Extra care should be taken when changing SANG_STATUS_xxx definitions to keep compatibility with existing binary files!

Enumerator
SANG_STATUS_SUCCESS	An operation completed successfully
SANG_STATUS_RX_DATA_TIMEOUT	Return codes specific for data reception: No data was received. NOT an error.
SANG_STATUS_RX_DATA_AVAILABLE	Data was received.
SANG_STATUS_NO_DATA_AVAILABLE	There is no RX data in API receive queue
SANG_STATUS_TX_TIMEOUT	Return codes specific for data transmission:Transmit command timed out
SANG_STATUS_TX_DATA_TOO_LONG	Longer than MTU
SANG_STATUS_TX_DATA_TOO_SHORT	Shorter than minimum
SANG_STATUS_TX_HDR_TOO_SHORT	Tx Header is too short
SANG_STATUS_LINE_DISCONNECTED	Return codes specific for line status:Physical line (T1/E1/Serial) is disconnected.
SANG_STATUS_PROTOCOL_DISCONNECTED	The Communication Protocol (CHDLC/Frame Relay/PPP/LAPD...) is disconnected
SANG_STATUS_LINE_CONNECTED	Physical line (T1/E1/Serial) is connected.
SANG_STATUS_PROTOCOL_CONNECTED	The Communication Protocol (CHDLC/Frame Relay/PPP/LAPD...) is connected
SANG_STATUS_COMMAND_ALREADY_RUNNING	Return codes specific for general errors:Two threads attempting to access device at the same time.
SANG_STATUS_BUFFER_TOO_SMALL	Buffer passed to API is too small.
SANG_STATUS_FAILED_TO_LOCK_USER_MEMORY	Kernel error
SANG_STATUS_FAILED_ALLOCATE_MEMORY	Memory allocatin failure
SANG_STATUS_INVALID_DEVICE_REQUEST	Command is invalid for device type.
SANG_STATUS_INVALID_PARAMETER	Invalid parameter
SANG_STATUS_GENERAL_ERROR	General interal error
SANG_STATUS_DEVICE_BUSY	Device is busy
SANG_STATUS_INVALID_DEVICE	Invalid device selected
SANG_STATUS_IO_ERROR	IO error on device
SANG_STATUS_UNSUPPORTED_FUNCTION	Unsupported command or function
SANG_STATUS_UNSUPPORTED_PROTOCOL	Unsupported protocol selected
SANG_STATUS_DEVICE_ALREADY_EXIST	Device already exists
SANG_STATUS_DEV_INIT_INCOMPLETE	Device initialization failed or not done
SANG_STATUS_TRACE_QUEUE_EMPTY	Trace queue empty
SANG_STATUS_OPTION_NOT_SUPPORTED	Unsupported command or option
SANG_STATUS_API_EVENT_AVAILABLE	Wanpipe API Event AvailableWanpipe API Event is available
SANG_STATUS_CAN_NOT_STOP_DEVICE_WHEN_ALREADY_STOPPED	API Operation Internal errors Failed to stop device, already stopped
SANG_STATUS_CAN_NOT_RUN_TWO_PORT_CMDS_AT_THE_SAME_TIME	Failed to execute command, busy due to collision
SANG_STATUS_STRUCTURE_SIZE_MISMATCH_ERROR	Header size mistmatch between user & driver. Recompilation is necessary
SANG_STATUS_REGISTRY_ERROR	Windows Specific definitionsWindows Registry Error
SANG_STATUS_IO_PENDING	Asynchronous IO
SANG_STATUS_APIPOLL_TIMEOUT	API Poll timeout - no events or data
SANG_STATUS_SHARED_EVENT_INIT_ERROR	Driver can not use 'shared event' supplied by the API user
SANG_STATUS_DATA_QUEUE_EMPTY	For internal API use only. Range reserved for internal API use startqueue empty
SANG_STATUS_DATA_QUEUE_FULL	queue empty full
SANG_STATUS_INVALID_IRQL	Driver routine was called at invalid IRQL.

Definition at line 487 of file wanpipe_api_hdr.h.

 {

     SANG_STATUS_SUCCESS=0,
     /*************************************/
     SANG_STATUS_RX_DATA_TIMEOUT,
     SANG_STATUS_RX_DATA_AVAILABLE,
     SANG_STATUS_NO_DATA_AVAILABLE,
     /*************************************/
     SANG_STATUS_TX_TIMEOUT,
     SANG_STATUS_TX_DATA_TOO_LONG,
     SANG_STATUS_TX_DATA_TOO_SHORT,
     SANG_STATUS_TX_HDR_TOO_SHORT,
     /*************************************/
     SANG_STATUS_LINE_DISCONNECTED,
     SANG_STATUS_PROTOCOL_DISCONNECTED,
     SANG_STATUS_LINE_CONNECTED,
     SANG_STATUS_PROTOCOL_CONNECTED,
     /*************************************/
     SANG_STATUS_COMMAND_ALREADY_RUNNING,
     SANG_STATUS_BUFFER_TOO_SMALL,
     SANG_STATUS_FAILED_TO_LOCK_USER_MEMORY,
     SANG_STATUS_FAILED_ALLOCATE_MEMORY,
     SANG_STATUS_INVALID_DEVICE_REQUEST,
     SANG_STATUS_INVALID_PARAMETER,
     SANG_STATUS_GENERAL_ERROR,
     SANG_STATUS_DEVICE_BUSY,
     SANG_STATUS_INVALID_DEVICE,
     SANG_STATUS_IO_ERROR,
     SANG_STATUS_UNSUPPORTED_FUNCTION,
     SANG_STATUS_UNSUPPORTED_PROTOCOL,
     SANG_STATUS_DEVICE_ALREADY_EXIST,
     SANG_STATUS_DEV_INIT_INCOMPLETE,
     SANG_STATUS_TRACE_QUEUE_EMPTY,
     SANG_STATUS_OPTION_NOT_SUPPORTED,
     /*************************************/
     SANG_STATUS_API_EVENT_AVAILABLE,
     /*************************************/
     SANG_STATUS_CAN_NOT_STOP_DEVICE_WHEN_ALREADY_STOPPED,
     SANG_STATUS_CAN_NOT_RUN_TWO_PORT_CMDS_AT_THE_SAME_TIME,
     SANG_STATUS_ASSOCIATED_IRP_SYSTEM_BUFFER_NULL_ERROR,
     SANG_STATUS_STRUCTURE_SIZE_MISMATCH_ERROR,
     /*************************************/
     SANG_STATUS_REGISTRY_ERROR=180,
     SANG_STATUS_IO_PENDING,
     SANG_STATUS_APIPOLL_TIMEOUT,
     SANG_STATUS_NO_FREE_BUFFERS,
     SANG_STATUS_SHARED_EVENT_INIT_ERROR,
     /****************************************/
     SANG_STATUS_DATA_QUEUE_EMPTY=190,
     SANG_STATUS_DATA_QUEUE_FULL,
     SANG_STATUS_INVALID_IRQL
 }SANG_STATUS_T;

Classes

Macros

Typedefs

Enumerations

Detailed Description

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

Macro Definition Documentation

Enumeration Type Documentation
