sangoma_interface Class Reference

Sangoma Interface Class that deals with span/chan IO (read/write/events) More...

#include <sangoma_interface.h>

Inheritance diagram for sangoma_interface:

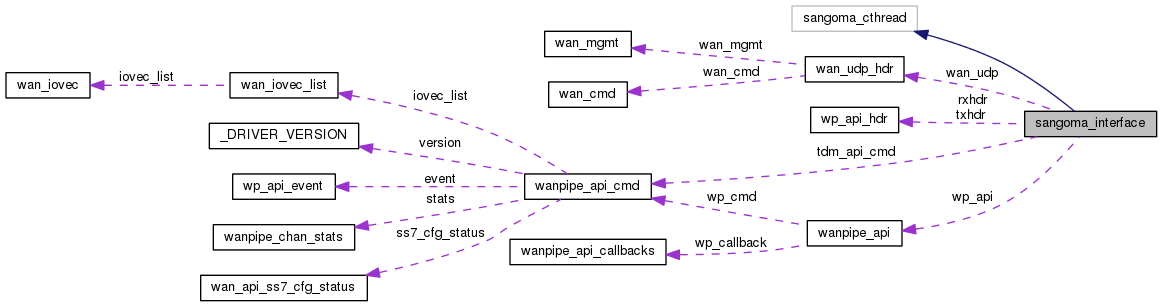

Collaboration diagram for sangoma_interface:

Public Member Functions
	sangoma_interface (int wanpipe_number, int interface_number)
int	DoManagementCommand (sng_fd_t drv, wan_udp_hdr_t *packet)
virtual int	init (callback_functions_t *callback_functions_ptr)
int	run ()
int	stop ()
int	transmit (wp_api_hdr_t *hdr, void *data)
int	receive (wp_api_hdr_t *hdr, void *data)
void	bit_swap_a_buffer (unsigned char *data, int len)
void	get_te1_56k_stat (void)
void	set_lb_modes (unsigned char type, unsigned char mode)
int	loopback_command (u_int8_t type, u_int8_t mode, u_int32_t chan_map)
int	get_operational_stats (wanpipe_chan_stats_t *stats)
virtual int	flush_operational_stats (void)
int	CreateSwDtmfTxThread (void *buffer)
int	CreateFskCidTxThread (void *buffer)
int	enable_rbs_monitoring ()
char	get_rbs (rbs_management_t *rbs_management_ptr)
char	set_rbs (rbs_management_t *rbs_management_ptr)
int	tdm_enable_rbs_events (int polls_per_second)
int	tdm_disable_rbs_events ()
int	set_tx_idle_flag (unsigned char new_idle_flag)
int	get_open_handles_counter ()
int	flush_tx_buffers (void)
unsigned char	get_adapter_type ()
unsigned int	get_sub_media ()
void	set_fe_debug_mode (sdla_fe_debug_t *fe_debug)
void	get_api_driver_version (PDRIVER_VERSION version)
void	get_card_customer_id (u_int8_t *customer_id)
int	resetFSKCID (void)
int	sendCallerID (char *name, char *number)
int	sendSwDTMF (char dtmf_char)
int	tdm_enable_rxhook_events ()
int	tdm_disable_rxhook_events ()
int	tdm_enable_rm_dtmf_events ()
int	tdm_disable_rm_dtmf_events ()
int	tdm_enable_dtmf_events (uint8_t channel)
int	tdm_disable_dtmf_events (uint8_t channel)
int	tdm_enable_ring_detect_events ()
int	tdm_disable_ring_detect_events ()
int	tdm_enable_ring_trip_detect_events ()
int	tdm_disable_ring_trip_detect_events ()
int	tdm_enable_ring_events ()
int	tdm_disable_ring_events ()
int	tdm_txsig_onhook ()
int	tdm_txsig_offhook ()
int	tdm_txsig_kewl ()
int	tdm_txsig_onhooktransfer ()
int	tdm_enable_tone_events (uint16_t tone_id)
int	tdm_disable_tone_events ()
int	tdm_front_end_activate ()
int	tdm_front_end_deactivate ()
int	tdm_control_flash_events (int rxflashtime)
int	tdm_control_rm_txgain (int txgain)
int	tdm_control_rm_rxgain (int rxgain)
int	tdm_set_rm_polarity (int polarity)
int	tdm_get_front_end_status (unsigned char *status)
int	tdm_set_user_period (unsigned int usr_period)
int	tdmv_api_ioctl (wanpipe_api_cmd_t *api_cmd)
int	reset_interface_state ()
int	start_ring_tone ()
int	stop_ring_tone ()
int	start_congestion_tone ()
int	stop_congestion_tone ()
int	start_busy_tone ()
int	stop_busy_tone ()
int	stop_all_tones ()
int	start_dial_tone ()
int	stop_dial_tone ()
int	start_ringing_phone ()
int	stop_ringing_phone ()
int	fxo_go_off_hook ()
int	fxo_go_on_hook ()
int	fxs_txsig_offhook ()
int	tdm_enable_bri_bchan_loopback (u_int8_t channel)
int	tdm_disable_bri_bchan_loopback (u_int8_t channel)

Public Attributes
char	device_name [DEV_NAME_LEN]
char	is_logger_dev

Protected Member Functions
unsigned char	get_wan_udphdr_data_byte (unsigned char off)
unsigned char *	get_wan_udphdr_data_ptr (unsigned char off)
unsigned char	set_wan_udphdr_data_byte (unsigned char off, unsigned char data)
void	RxThreadFunc ()
void	TxThreadFunc ()
int	read_data ()
virtual int	read_event ()
int	write_data (wp_api_hdr_t *hdr, void *tx_buffer)
void	cleanup ()
int	get_wan_config ()
int	get_interface_configuration (if_cfg_t *wanif_conf_ptr)
int	get_fe_type (unsigned char *adapter_type)
int	wanpipe_api_ioctl (wan_cmd_api_t *api_cmd)
void	generate_bit_rev_table ()
void	TxStelEncoderBuffer (void *pStelEncoderBuffer)
virtual unsigned long	threadFunction (struct ThreadParam &thParam)

Protected Attributes
sng_fd_t	sangoma_dev
sangoma_wait_obj_t *	sng_wait_obj [SANGOMA_INTERFACE_NUMBER_OF_WAIT_OBJECTS]
ULONG	rx_frames_count
ULONG	rx_bytes_count
ULONG	bad_rx_frames_count
DWORD	dwRxThreadId
ULONG	tx_bytes_count
ULONG	tx_frames_count
UCHAR	tx_test_byte
wan_udp_hdr_t	wan_udp
int	protocol_cb_size
int	wan_protocol
unsigned char	adapter_type
wanpipe_api_cmd_t	tdm_api_cmd
wanpipe_api_t	wp_api
unsigned char	wp_brt [256]
char	is_rbs_monitoring_enabled
stelephony_callback_functions_t	scf
void *	stelObj
void *	DtmfBuffer
void *	FskCidBuffer
CRITICAL_SECTION	StelTxCriticalSection
char	terminate_tx_rx_threads
wp_api_hdr_t	rxhdr
unsigned char	rx_data [SAMPLE_CPP_MAX_DATA_LEN]
wp_api_hdr_t	txhdr
unsigned char	tx_data [SAMPLE_CPP_MAX_DATA_LEN]
if_cfg_t	wanif_conf_struct
int	WanpipeNumber
int	InterfaceNumber
callback_functions_t	callback_functions

Detailed Description

Sangoma Interface Class that deals with span/chan IO (read/write/events)

Definition at line 104 of file sangoma_interface.h.

Member Function Documentation

unsigned char sangoma_interface::get_wan_udphdr_data_byte ( unsigned char  off )

protected

deprecated: Helper function to get data byte out of wan_udp structure

unsigned char* sangoma_interface::get_wan_udphdr_data_ptr ( unsigned char  off )

protected

deprecated: Helper function to get data pointer out of wan_udp structure

unsigned char sangoma_interface::set_wan_udphdr_data_byte ( unsigned char  off, unsigned char  data  )

protected

deprecated: Helper function to set data pointer out of wan_udp structure

void sangoma_interface::RxThreadFunc ( )

protected

Rx Thread function

void sangoma_interface::TxThreadFunc ( )

protected

Tx Thread function

int sangoma_interface::read_data ( )

protected

Rx Data handler function

virtual int sangoma_interface::read_event ( )

protectedvirtual

Rx Event handler function

Reimplemented in sangoma_api_logger_dev.

void sangoma_interface::cleanup ( )

protected

Shutdown function to cleanup the class

int sangoma_interface::get_wan_config ( )

protected

Get device span configuration

int sangoma_interface::get_interface_configuration ( if_cfg_t *  wanif_conf_ptr )

protected

Get interface chan configuration

int sangoma_interface::get_fe_type ( unsigned char *  adapter_type )

protected

Get front end type (T1/E1...)

int sangoma_interface::wanpipe_api_ioctl ( wan_cmd_api_t *  api_cmd )

protected

deprecated: Execute API command IOCTL - one should use libsangoma directly

void sangoma_interface::generate_bit_rev_table ( )

protected

deprecated: Generate bit reversal table - not used with new sangoma cards

int sangoma_interface::transmit	(	wp_api_hdr_t *	hdr,
		void *	data
	)

Write data to device

Referenced by tx_file().

Here is the caller graph for this function:

int sangoma_interface::receive	(	wp_api_hdr_t *	hdr,
		void *	data
	)

Read data from device

Member Data Documentation

sng_fd_t sangoma_interface::sangoma_dev

protected

Sangoma IO device descriptor

Definition at line 108 of file sangoma_interface.h.

sangoma_wait_obj_t* sangoma_interface::sng_wait_obj[SANGOMA_INTERFACE_NUMBER_OF_WAIT_OBJECTS]

protected

wait object for an IO device

Definition at line 111 of file sangoma_interface.h.

ULONG sangoma_interface::rx_frames_count

protected

< rx count statistic

Definition at line 116 of file sangoma_interface.h.

ULONG sangoma_interface::rx_bytes_count

protected

rx byte statistic

Definition at line 118 of file sangoma_interface.h.

ULONG sangoma_interface::bad_rx_frames_count

protected

corrupted frame count statistic

Definition at line 121 of file sangoma_interface.h.

DWORD sangoma_interface::dwRxThreadId

protected

Rx thread id used for launching threads that handle rx path

Definition at line 123 of file sangoma_interface.h.

ULONG sangoma_interface::tx_bytes_count

protected

tx byte statistic

Definition at line 128 of file sangoma_interface.h.

ULONG sangoma_interface::tx_frames_count

protected

tx frame statistic

Definition at line 130 of file sangoma_interface.h.

UCHAR sangoma_interface::tx_test_byte

protected

tx test byte sent statistic

Definition at line 132 of file sangoma_interface.h.

wan_udp_hdr_t sangoma_interface::wan_udp

protected

deprecated: ioctl management structure, used to execute management commands - one should use libsangoma directly

Definition at line 137 of file sangoma_interface.h.

int sangoma_interface::protocol_cb_size

protected

deprecated: protocol command structure size

Definition at line 149 of file sangoma_interface.h.

int sangoma_interface::wan_protocol

protected

device low level protocol (T1/E1...) currently running

Definition at line 151 of file sangoma_interface.h.

unsigned char sangoma_interface::adapter_type

protected

device adapter type

Definition at line 153 of file sangoma_interface.h.

wanpipe_api_cmd_t sangoma_interface::tdm_api_cmd

protected

deprecated: API command structure used to execute API commands

Definition at line 156 of file sangoma_interface.h.

wanpipe_api_t sangoma_interface::wp_api

protected

API command structure used to execute API commands. This command structure is used with libsangoma library

Definition at line 159 of file sangoma_interface.h.

unsigned char sangoma_interface::wp_brt[256]

protected

Bert test pattern

Definition at line 189 of file sangoma_interface.h.

char sangoma_interface::is_rbs_monitoring_enabled

protected

Flag indicating that rbs is enabled

Definition at line 195 of file sangoma_interface.h.

stelephony_callback_functions_t sangoma_interface::scf

protected

Stelephony provides Analog CallierID and DTMF encoding/decoding

Definition at line 199 of file sangoma_interface.h.

wp_api_hdr_t sangoma_interface::rxhdr

protected

API header for rx data

Definition at line 212 of file sangoma_interface.h.

unsigned char sangoma_interface::rx_data[SAMPLE_CPP_MAX_DATA_LEN]

protected

Data buffer to copy rx data into

Definition at line 214 of file sangoma_interface.h.

wp_api_hdr_t sangoma_interface::txhdr

protected

API header for tx data

Definition at line 217 of file sangoma_interface.h.

unsigned char sangoma_interface::tx_data[SAMPLE_CPP_MAX_DATA_LEN]

protected

Data buffer to copy tx data into

Definition at line 219 of file sangoma_interface.h.

if_cfg_t sangoma_interface::wanif_conf_struct

protected

Wanpipe Interface configuration structure to be populated on read configuration

Definition at line 222 of file sangoma_interface.h.

int sangoma_interface::WanpipeNumber

protected

Wanpipe Device number based on hardware probe device enumeration (SPAN)

Definition at line 225 of file sangoma_interface.h.

int sangoma_interface::InterfaceNumber

protected

Wanpipe Interface number based on a channel in a SPAN

Definition at line 228 of file sangoma_interface.h.

callback_functions_t sangoma_interface::callback_functions

protected

Callback functions used to call the application on IO events

Definition at line 235 of file sangoma_interface.h.

---

The documentation for this class was generated from the following file:

• sangoma_interface.h
