WANPIPE(tm) Driver API - Provides FULL Wanpipe Driver API Support. More...

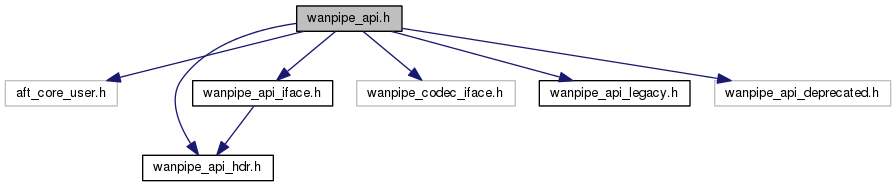

#include "aft_core_user.h"#include "wanpipe_api_hdr.h"#include "wanpipe_api_iface.h"#include "wanpipe_codec_iface.h"#include "wanpipe_api_legacy.h"#include "wanpipe_api_deprecated.h"
Go to the source code of this file.
Classes | |
| struct | wan_mgmt |
| Wanpipe UDP Management Structure. More... | |
| struct | wan_udp_hdr |
| Wanpipe UDP Structure used for Maintenance and Debugging. More... | |
Macros | |
| #define | GLOBAL_UDP_SIGNATURE "WANPIPE" |
| #define | GLOBAL_UDP_SIGNATURE_LEN 7 |
| #define | UDPMGMT_UDP_PROTOCOL 0x11 |
| #define | xilinx aft |
| #define | wan_udphdr_signature wan_mgmt.signature |
| #define | wan_udphdr_request_reply wan_mgmt.request_reply |
| #define | wan_udphdr_id wan_mgmt.id |
| #define | wan_udphdr_opp_flag wan_cmd.wan_cmd_opp_flag |
| #define | wan_udphdr_command wan_cmd.wan_cmd_command |
| #define | wan_udphdr_data_len wan_cmd.wan_cmd_data_len |
| #define | wan_udphdr_return_code wan_cmd.wan_cmd_return_code |
| #define | wan_udphdr_fe_force wan_cmd.wan_cmd_fe_force |
| #define | wan_udphdr_hdlc_PF_bit wan_cmd.wan_cmd_hdlc_PF_bit |
| #define | wan_udphdr_fr_dlci wan_cmd.wan_cmd_fr_dlci |
| #define | wan_udphdr_fr_attr wan_cmd.wan_cmd_fr_attr |
| #define | wan_udphdr_fr_rxlost1 wan_cmd.wan_cmd_fr_rxlost1 |
| #define | wan_udphdr_fr_rxlost2 wan_cmd.wan_cmd_fr_rxlost2 |
| #define | wan_udphdr_x25_pf wan_cmd.wan_cmd_x25_pf |
| #define | wan_udphdr_x25_lcn wan_cmd.wan_cmd_x25_lcn |
| #define | wan_udphdr_x25_qdm wan_cmd.wan_cmd_x25_qdm |
| #define | wan_udphdr_x25_cause wan_cmd.wan_cmd_x25_cause |
| #define | wan_udphdr_x25_diagn wan_cmd.wan_cmd_x25_diagn |
| #define | wan_udphdr_x25_pktType wan_cmd.wan_cmd_x25_pktType |
| #define | wan_udphdr_bscstrm_misc_bits wan_cmd.wan_cmd_bscstrm_misc_bits |
| #define | wan_udphdr_bscstrm_Rx_err_bits wan_cmd.wan_cmd_bscstrm_Rx_err_bits |
| #define | wan_udphdr_bscstrm_Rx_time_stamp wan_cmd.wan_cmd_bscstrm_Rx_time_stamp |
| #define | wan_udphdr_bscstrm_port wan_cmd.wan_cmd_bscstrm_port |
| #define | wan_udphdr_bsc_misc_bits wan_cmd.wan_cmd_bsc_misc_bit |
| #define | wan_udphdr_bsc_misc_heading_len wan_cmd.wan_cmd_bsc_misc_heading_len |
| #define | wan_udphdr_bsc_misc_notify wan_cmd.wan_cmd_bsc_misc_notify |
| #define | wan_udphdr_bsc_misc_station wan_cmd.wan_cmd_bsc_misc_station |
| #define | wan_udphdr_bsc_misc_poll_add wan_cmd.wan_cmd_bsc_misc_poll_addr |
| #define | wan_udphdr_bsc_misc_select_addr wan_cmd.wan_cmd_bsc_misc_select_addr |
| #define | wan_udphdr_bsc_misc_device_addr wan_cmd.wan_cmd_bsc_misc_device_addr |
| #define | wan_udphdr_chdlc_num_frames wan_udphdr_u.chdlc.trace_info.num_frames |
| #define | wan_udphdr_chdlc_ismoredata wan_udphdr_u.chdlc.trace_info.ismoredata |
| #define | wan_udphdr_chdlc_data wan_udphdr_u.chdlc.data |
| #define | wan_udphdr_bitstrm_num_frames wan_udphdr_u.bitstrm.trace_info.num_frames |
| #define | wan_udphdr_bitstrm_ismoredata wan_udphdr_u.bitstrm.trace_info.ismoredata |
| #define | wan_udphdr_bitstrm_data wan_udphdr_u.bitstrm.data |
| #define | wan_udphdr_adsl_num_frames wan_udphdr_u.adsl.trace_info.num_frames |
| #define | wan_udphdr_adsl_ismoredata wan_udphdr_u.adsl.trace_info.ismoredata |
| #define | wan_udphdr_adsl_data wan_udphdr_u.adsl.data |
| #define | wan_udphdr_atm_num_frames wan_udphdr_u.atm.trace_info.num_frames |
| #define | wan_udphdr_atm_ismoredata wan_udphdr_u.atm.trace_info.ismoredata |
| #define | wan_udphdr_atm_data wan_udphdr_u.atm.data |
| #define | wan_udphdr_ss7_num_frames wan_udphdr_u.ss7.trace_info.num_frames |
| #define | wan_udphdr_ss7_ismoredata wan_udphdr_u.ss7.trace_info.ismoredata |
| #define | wan_udphdr_ss7_data wan_udphdr_u.ss7.data |
| #define | wan_udphdr_aft_trace_info wan_udphdr_u.aft.trace_info |
| #define | wan_udphdr_aft_num_frames wan_udphdr_u.aft.trace_info.num_frames |
| #define | wan_udphdr_aft_ismoredata wan_udphdr_u.aft.trace_info.ismoredata |
| #define | wan_udphdr_aft_data wan_udphdr_u.aft.data |
| #define | wan_udphdr_data wan_udphdr_aft_data |
Typedefs | |
| typedef struct wan_mgmt | wan_mgmt_t |
| typedef struct wan_udp_hdr | wan_udp_hdr_t |
Enumerations | |
| enum | wanpipe_aft_devel_events { SIOC_WAN_READ_REG = 0x01, SIOC_WAN_WRITE_REG, SIOC_WAN_HWPROBE, SIOC_WAN_ALL_HWPROBE, SIOC_WAN_ALL_READ_REG, SIOC_WAN_ALL_WRITE_REG, SIOC_WAN_ALL_SET_PCI_BIOS, SIOC_WAN_SET_PCI_BIOS, SIOC_WAN_COREREV, SIOC_WAN_GET_CFG, SIOC_WAN_FE_READ_REG, SIOC_WAN_FE_WRITE_REG, SIOC_WAN_EC_REG, SIOC_WAN_READ_PCIBRIDGE_REG, SIOC_WAN_ALL_READ_PCIBRIDGE_REG, SIOC_WAN_WRITE_PCIBRIDGE_REG, SIOC_WAN_ALL_WRITE_PCIBRIDGE_REG, SIOC_WAN_GET_CARD_TYPE, SIOC_WAN_USB_READ_REG, SIOC_WAN_USB_WRITE_REG, SIOC_WAN_USB_CPU_WRITE_REG, SIOC_WAN_USB_CPU_READ_REG, SIOC_WAN_USB_FE_WRITE_REG, SIOC_WAN_USB_FE_READ_REG, SIOC_WAN_USB_FW_DATA_READ, SIOC_WAN_USB_FW_DATA_WRITE, SIOC_WAN_USB_FWUPDATE_ENABLE } |
| Wanpipe Commands associated with WANPIPE_IOCTL_DEVEL Ioctl. More... | |
Detailed Description
WANPIPE(tm) Driver API - Provides FULL Wanpipe Driver API Support.
Full API includes: Management/Configuration/IO/Events
Authors: Nenad Corbic ncorbic@sangoma.com David Rokhvarg davidr@sangoma.com Alex Feldman alex@sangoma.com
Copyright (c) 2007 - 08, Sangoma Technologies All rights reserved.
- Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the Sangoma Technologies nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY Sangoma Technologies ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL Sangoma Technologies BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
Definition in file wanpipe_api.h.
Macro Definition Documentation
| #define GLOBAL_UDP_SIGNATURE "WANPIPE" |
WANPIPE API HEADER & EVENT STRUCTURE Common Unified API Header for all Protocols
(This file is also included at the top. This include has been added so its easier to follow the api header) WANPIPE LEGACY API
Definition at line 64 of file wanpipe_api.h.
Enumeration Type Documentation
Wanpipe Commands associated with WANPIPE_IOCTL_DEVEL Ioctl.
The Devel Commands are used to debug the driver and firmware. Should only be used during debugging.
Definition at line 255 of file wanpipe_api.h.
